Core-3588J 8K AI System on Module RK3588 SOC

$209.00 USD
$209.00 USD
Versand wird beim Checkout berechnet
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Sammlungen:
Core-3588J 8K AI System on Module RK3588 SOC
$209.00 USD
$209.00 USD

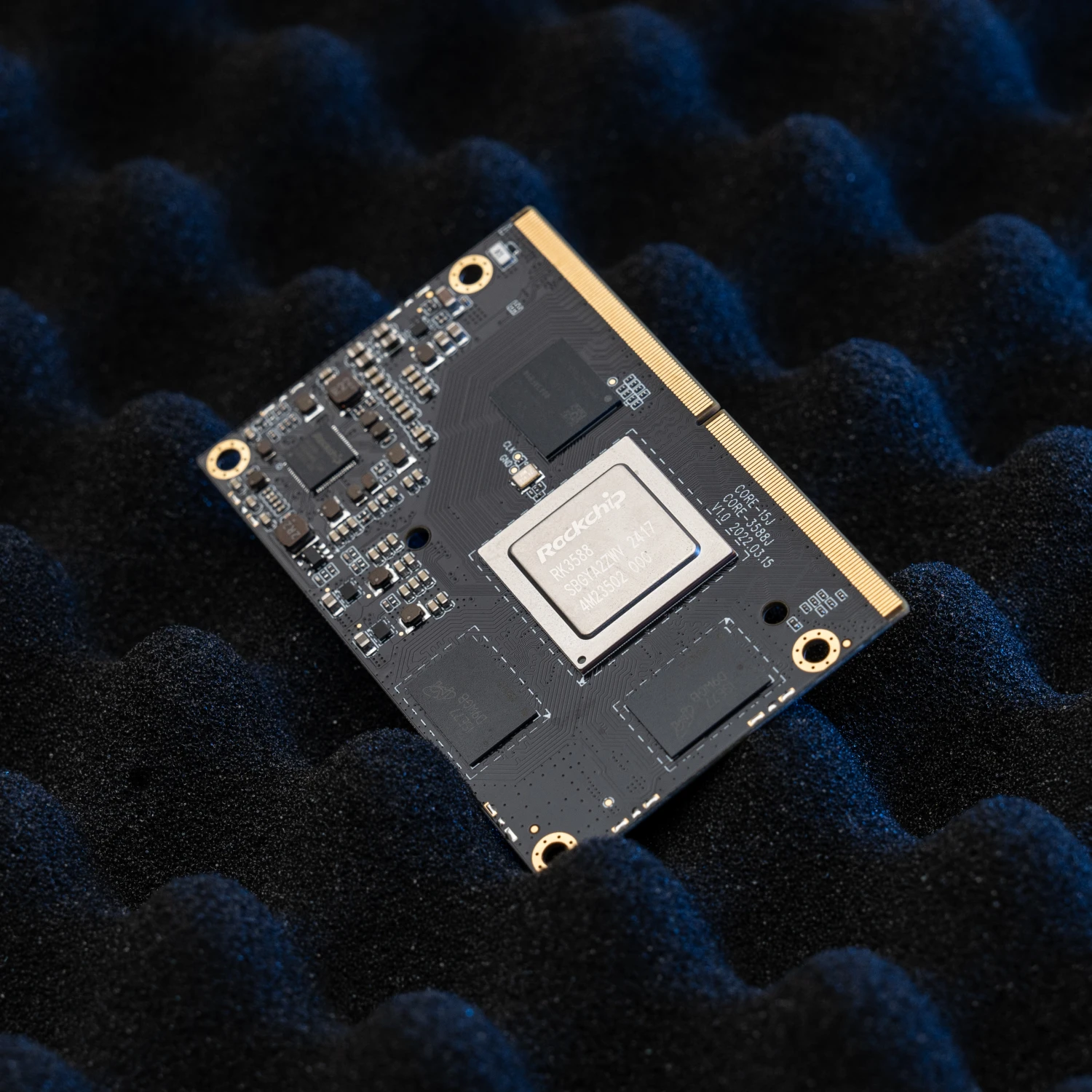

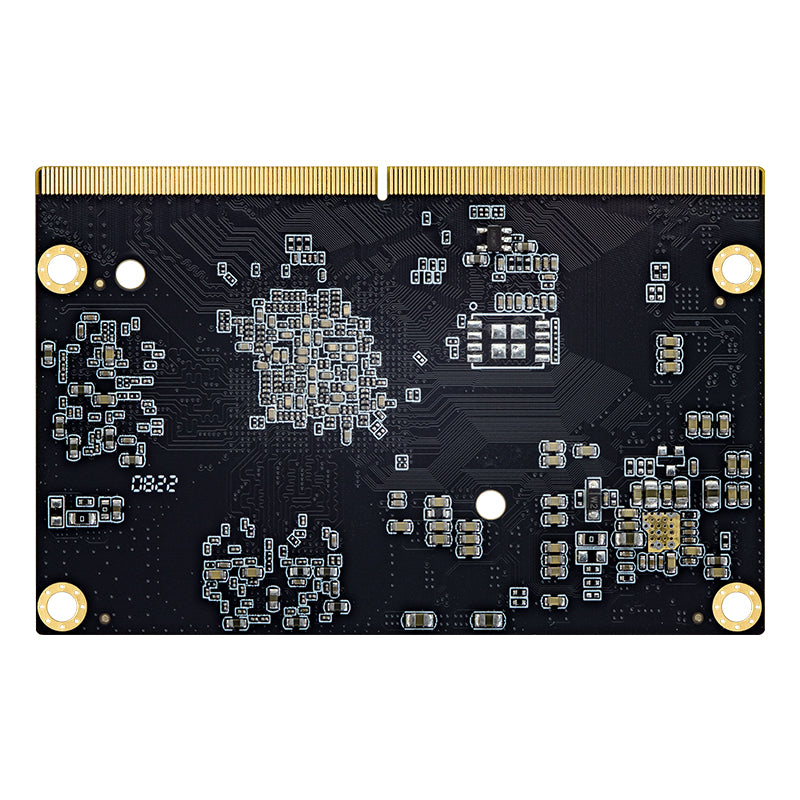

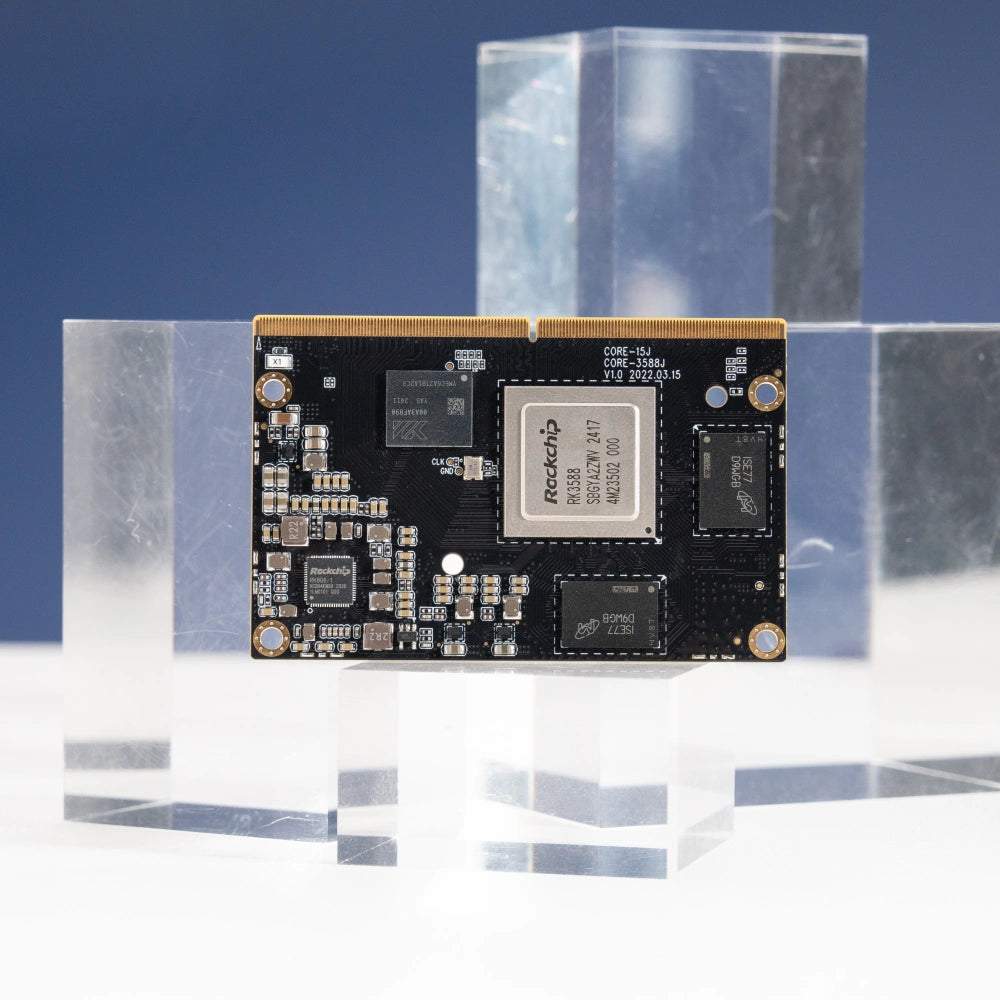

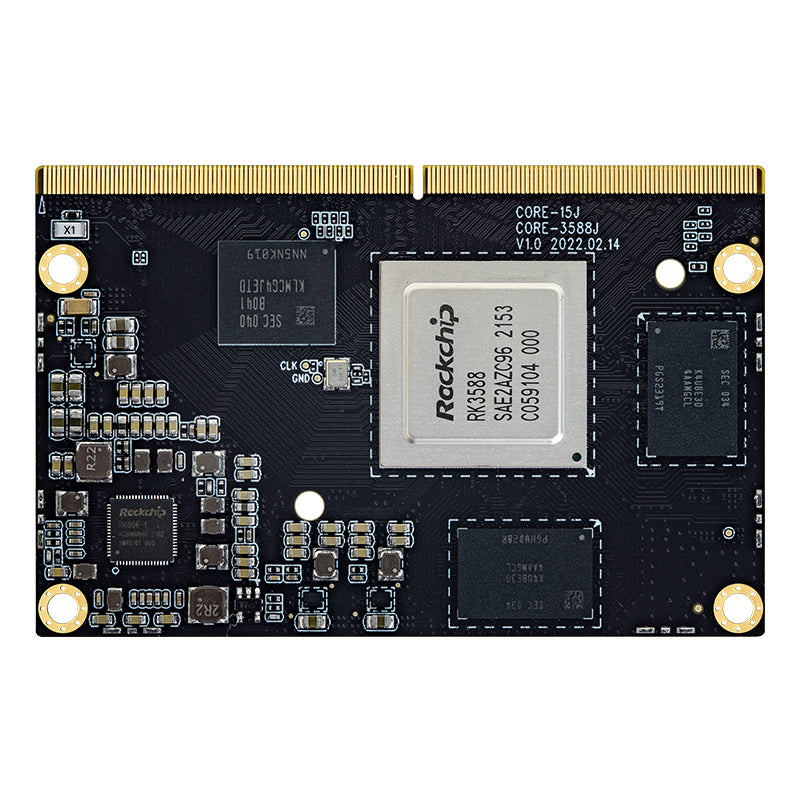

Core-3588J 8K AI Motherboard is powered by Rockchip RK3588 new-gen 8-core 64-bit processor, the core board can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G expansion, and a variety of video input and output. It also supports various operating systems. This core board can be used in ARM PC, edge computing, cloud servers, smart NVR, and other fields.

owered by Rockchip RK3588 new-gen 8-core 64-bit processor, the core board can be configured with up to 32GB RAM. Capable of 8K video encoding and decoding, it provides abundant interfaces supporting multiple hard disks, Gigabit Ethernet, WiFi6, 5G/4G, etc.

Shipping list

Core-3588J x 1
Soc

RockChip RK3588
Cpu

8-core 64-bit (4 × Cortex-A76+4 × Cortex-A55) , 8nm lithography process, frequency up to 2.4GHz
Vpu

Video decoding:

  • 8K@60fps H.265/VP9/AVS2
  • 8K@30fps H.264 AVC/MVC
  • 4K@60fps AV1
  • 1080P@60fps MPEG-2/-1/VC-1/VP8

Video encoding:

  • 8K@30fps encoding, Supports H.265 / H.264

* Achieves up to 32-channel 1080P@30fps decoding and 16-channel 1080P@30fps encoding
Ram

4GB/8GB/16GB 64bit LPDDR4/LPDDR4x/LPDDR5 (Up to 32GB optional)
Storage

16GB/32GB/64GB/128GB eMMC
Pcie

PCIe3.0 (2×2lanes,1×4lanes,4×1lanes), 3×PCIE2.0 (1 lanes)
Sata

3 × SATA3.0
Power

4V (error±5%)
Power consumption
  • Idle: ≈1.35W (12V/110mA)
  • Typical: ≈4.8W (12V/400mA)
  • Max: ≈20W (12V/1700mA)
Video output
  • 2 × HDMI2.1 (8K@60fps or 4K@120fps，Combo with eDP (4K@60fps) )
  • 2 × MIPI-DSI (4K@60fps)
  • 2 × DP1.4 (8K@30fps，Combo with USB 3.0)
  • 1 × BT.1120 (1080P@60fps)
Video input
  • 1 × HDMI-IN ( 4K@60fps) , supports HDCP 2.3
  • 1 × MIPI CSI (4 lanes) or 2×MIPI CSI (2 lanes)
  • 2 × MIPI DC ( 4-lane DPHY v2.0 or 3-lane CPHY V1.1)
  • 1 × DVP camera (up to 150MHz input data)

    * Supports multi-channel 8K video output and 4K video input, up to seven-screen output with different displays
Audio
  • 2 × 8-channel I2S
  • 2 × 2-channel I2S
  • 2 × SPDIF
  • 2 × 8-channel PDM (supports multi-MIC array)
  • 1 × Dual-channel digital audio codec (16-bit DAC)
  • 1 × VAD
Os
  • Android: Android 12.0
  • Linux: Ubuntu Desktop, Ubuntu Server, Debian11, Buildroot, RTLinux, Kylin Linux, UOS

* Supports UEFI Boot
Dimension

82 mm × 53 mm
Environment
  • Operating Temperature: -20℃-60℃,
  • Storage Temperature: -20℃-70℃,
  • Storage Humidity: 10%-80%
Network
  • Integrated with PCIe3.0/GMAC/SDIO3.0/USB3.0, it can be extended to multi-channel Gigabit Ethernet
  • WiFi 6/Bluetooth, 5G/4G LTE
Interface type

MXM3.0 (314 PIN, 0.5mm pitch)
Other interface
  • 9 × I2C
  • 10 × UART
  • 5 × SPI
  • 7 × ADC
  • 16 × PWM
  • 1 × SDMMC
  • GPIO
Pcb

10-layer design, immersion gold technology
Heat dissipation

Heat sink installation hole pitch: 45mm
Usb
  • 3 × USB3.0
  • 4 × USB2.0 Host
  • 2 × USB2.0 OTG
