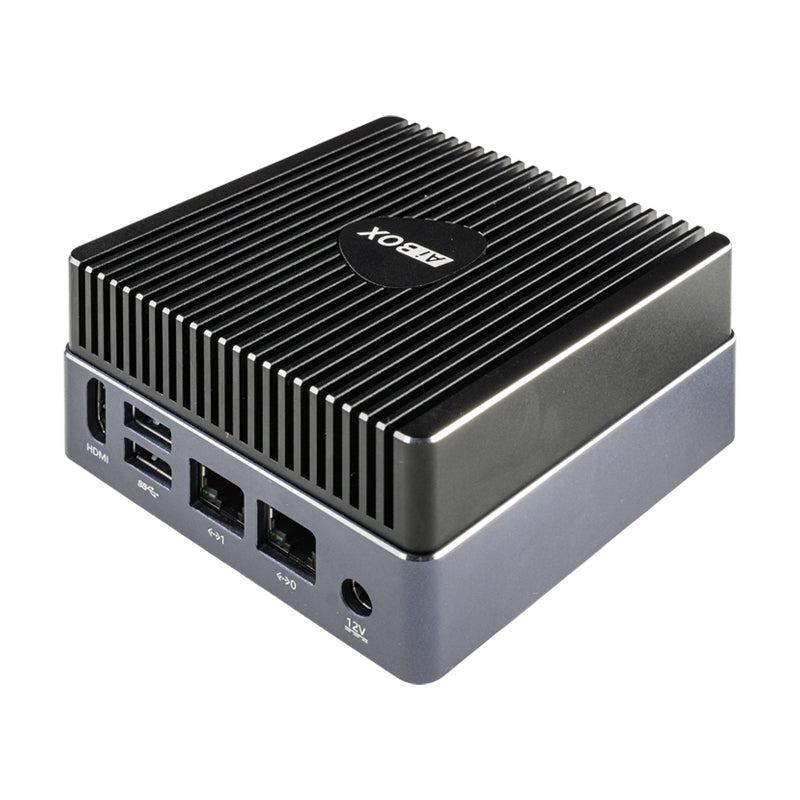

AIBOX-3588 RK3588 Edge Computing Embedded PC

$209.00 USD
$229.00 USD $209.00 USD
-9%
Shipping calculated at checkout.
Storage: 8G RAM+64G ROM
Spec: Standard
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 10 in stock
Collections:
FireflyAIBOX-OrinNX Jetson Orin NX Embedded PC
AIBOX-OrinNX NVIDIA Jetson Embedded PC
AIBOX-3576 Rockchip AI Edge Computing Embedded PC
FireflyAIBOX-3576 Rockchip AI Edge Computing Embedded PC
AIBOX-3588 AI Edge Computing Embedded PC
$209.00 USD
$229.00 USD $209.00 USD

AIBOX-3588 low-power large-model embedded PC supports mainstream large-model private deployment, privatizing AI computing power, and one box can meet personalized AI deployment! The host features a built-in ARM Mali G52 MC3 GPU, offering computing power of up to 6 TOPS. This enables more intelligent data processing, voice recognition, and image analysis, meeting the edge computing AI application needs of most terminal devices.

Feature

  • The Private Deployment of Large Models: This embedded PC provides up to 6 TOPS of computing power, enabling advanced intelligent data processing, voice recognition, image analysis, and other functions, effectively meeting the AI application needs of various terminal devices for edge computing.
  • Octa-core 64-bit AIOT Processor RK3588:  RK3588, a new generation of octa-core 64-bit high-performance AIoT processor RK3588, adopts 8nm LP process and has a maximum main frequency of 2.4GHz.
  • 8K@60fps  H.265/VP9 Video Decoding: Supports 8K@60fps H.265/VP9 video decoding and 8K@30fps H.265/H.264 video encoding, and can encode and decode simultaneously.
  • Strong Network Communication Capability: Equipped with dual 1000Mbps Ethernet to ensure high-speed and stable network communication.
  • Alloy Shell, Efficient Heat Dissipation: Equipped with a full metal shell and aluminum alloy structure for heat conduction, the side of the top cover shell adopts a banner grille design to ensure external air circulation and efficient heat dissipation, ensuring computing performance and stability during high-temperature operation.

Applications

  • Intelligent Surveillance
  • AI Intelligent Teaching
  • Edge Computing
  • Large Language Model
  • Data Security

Shipping list

AIBOX-3588 x 1
Soc

Rockchip RK3588
Cpu

Octa-core 64-bit processor (4×Cortex-A76+4×Cortex-A55), main frequency up to 2.4 GHz
Gpu

ARM Mali-G610 MP4 quad-core GPU, supports OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu

6 TOPS NPU, supports INT4/INT8/INT16 mixed operations
Ram

LPDDR4 (4GB/8GB/16GB optional, up to 32GB)
Storage

eMMC (16GB/32GB/64GB/128GB/256GB optional), UFS2.0 (Only AIBOX-3576 optional)
Storage expansion

1 × M.2 (Expandable SATA 3.0/PCIe NVMe SSD, supports 2242/2260/2280; Inside the computer, M.2 multiplexed with lower USB3.0), 1 × TF Card
Power

DC 12V/3A (DC 5.5 × 2.1mm)
Power consumption
  • Normal: 1.2W(12V/100mA)
  • Max: 7.2W(12V/600mA)
    Min: 0.72W (12V/6mA)
Video output

1 × HDMI2.1 (4K@120fps)
Encoding decoding
  • Decoding: 8K@60fps/4K@120fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8
  • Encoding: 8K@30fps H.265/H.264
Os

Linux OS (Ubuntu)
Software support
  • Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B, and other large language models
  • It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN
    models; Supports a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX, and Darknet. It also supports the development of custom operators
  • Support Docker container management technology
Dimension

93.4mm × 93.4mm × 50mm
Weight

≈ 500g
Environment
  • Operating: -20℃～60℃
  • Storage: -20℃～70℃
  • Storage Humidity: 10%～90%RH (non-condensing)
Ethernet

2 × Gigabit Ethernet (1000Mbps/RJ45)
Usb

2 × USB3.0 (Max: 1A, M.2 multiplexed with lower USB3.0)
Product tutorials Click Here
Sdk software and firmware files Click Here
