AIBOX-1688 AI Edge Computing Embedded PC
$239.00 USD
$249.00 USD $239.00 USD

The AIBOX-1688 AI edge computer delivers 16 TOPS of processing power, enabling private deployment of mainstream large AI models for secure, customized on-device intelligence in enterprise and industrial applications.

Feature

  • 16 TOPS AI Processor BM1688: The BM1688 AI processor by SOPHON features an octa-core ARM Cortex-A53 (up to 1.6GHz) and a TPU acceleration engine, delivering 32 TOPS INT4, 16 TOPS INT8, 4 TFLOPS FP16/BF16, and 0.5 TFLOPS FP32 performance. Supporting major AI frameworks, it's ideal for AI inference, computer vision, and edge computing applications.
  • Multi-channel Video AI Performance: The AI edge computing box delivers robust video processing with 16-channel 1080P H.264 decoding, 10-channel 1080P encoding, and simultaneous 16-channel HD video analysis.
  • Strong Network Communication Capability: The AIBOX embedded PC is equipped with dual 1000Mbps Ethernet ports to ensure high-speed and stable network communication, meeting the needs of various application scenarios.

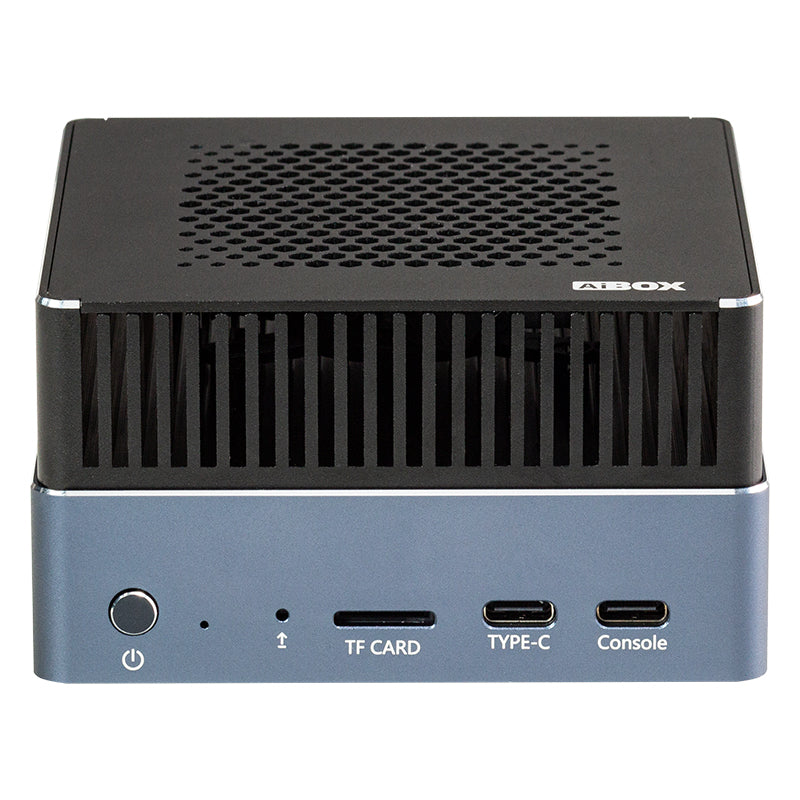

  • All-aluminum Alloy Enclosure: The industrial-grade AI box features a rugged all-metal enclosure with aluminum alloy construction for superior thermal conduction. Its optimized grille design enables efficient airflow and heat dissipation, maintaining peak computing performance and reliability even in high-temperature environments.

Hardware Overview

Soc

SOPHON BM1688
Cpu

Octa-core ARM Cortex-A53 @ 1.6GHz
Tpu

Built-in SOPHGO neural network acceleration engine TPU, 32T@INT4 peak computing power, 16T@INT8 peak computing power, 4T@FP16/BF16computing power, 0.5T@FP32 computing power
Vpu
  • Video decoding: H.264 / H.265 decoding (Max performance: 1920 * 1080@480FPS or 3840 * 2160 @120FPS)
  • Video encoding: H.264 / H.265 encoding (Max performance: 1920 * 1080@300FPS or 3840 * 2160 @75 FPS)
  • Image codec: JPEG/MJPEG Baseline codec (JPEG codec with a maximum resolution of 1080P@480 FPS)
Ram

8GB LPDDR4 (4GB/8GB/16GB optional)
Storage

32GB eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion

1 x M.2 (Expandable PCIe NVMe SSD(default support)/SATA SSD(supported after software update), supports 2242/2260/2280) (inside the device), 1 x TF Card
Power

DC 12V/3A (DC 5.5 x 2.1mm)
Power consumption

Normal: 7.2W(12V/600mA)

Max: 14.4W(12V/1200mA)
Video output

1 x HDMI2.0（4K@60fps)
Os

Linux
Software support
  • The private deployment of ultra-large-scale parameter models under the Transformer architecture, including large language models such as Gemma-2B, LlaMa2-7B, ChatGLM3-6B, Qwen1.5-1.8B.
  • Traditional network architectures such as CNN, RNN, and LSTM; a variety of deep learning frameworks, including TensorFlow, PyTorch, MXNet, PaddlePaddle, and ONNX, as well as custom operator development
  • Docker container management technology
Dimension

93.4 mm × 93.4 mm × 50 mm
Weight

≈ 500g
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Storage Humidity: 10%～90%RH (non-condensing)
Ethernet

2 x 1000Mbps Ethernet
Usb

2 x USB3.0 (Current Limit: 1A)
Other
  • 1 x Type-C (USB 2.0 device mode only)
  • 1 x Console (Debug serial)
  • 1 x Power button
  • 1 x Recovery
