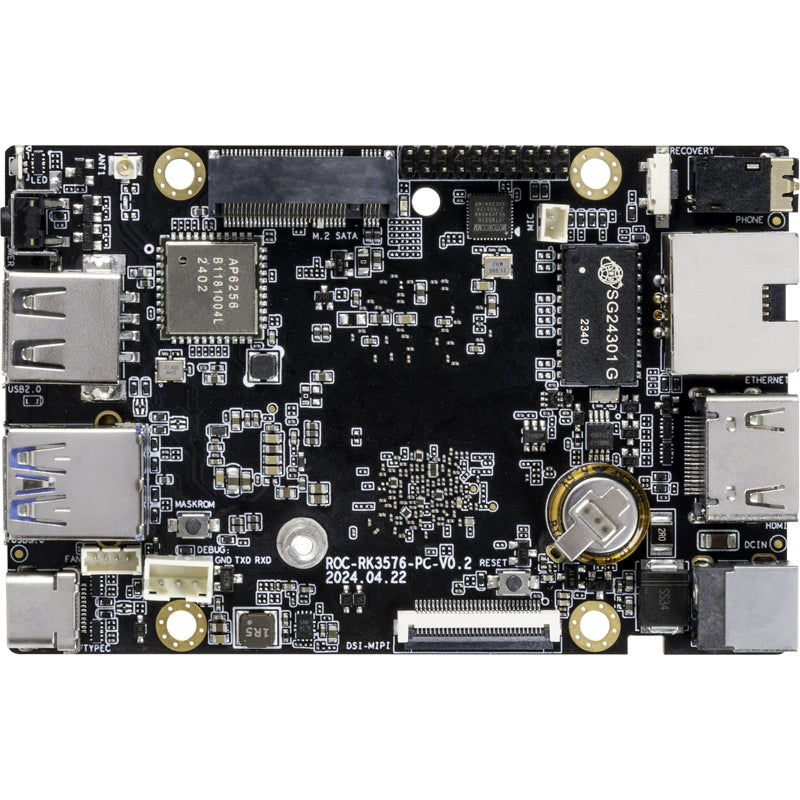

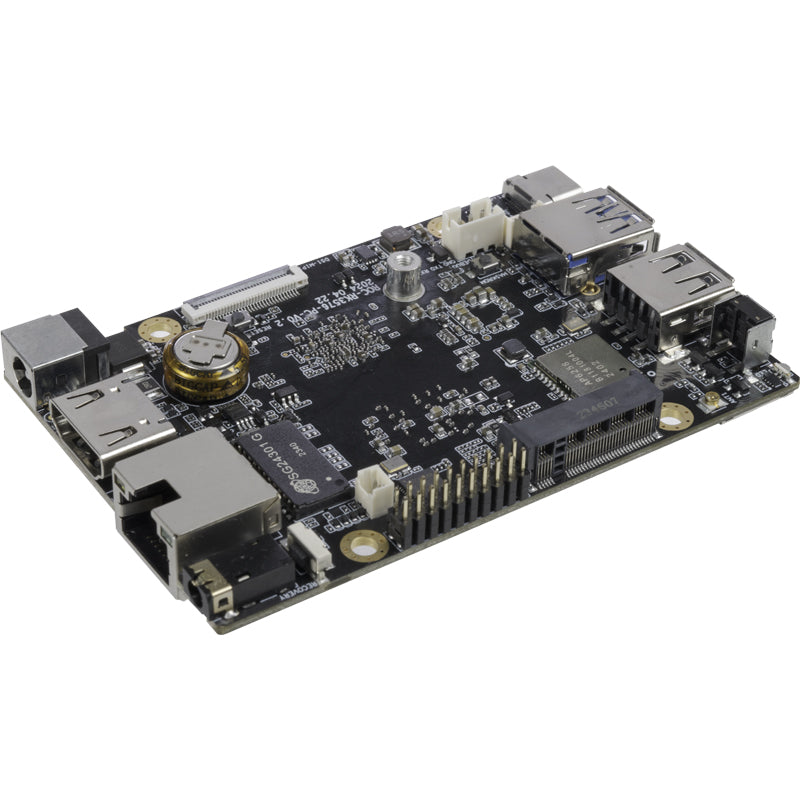

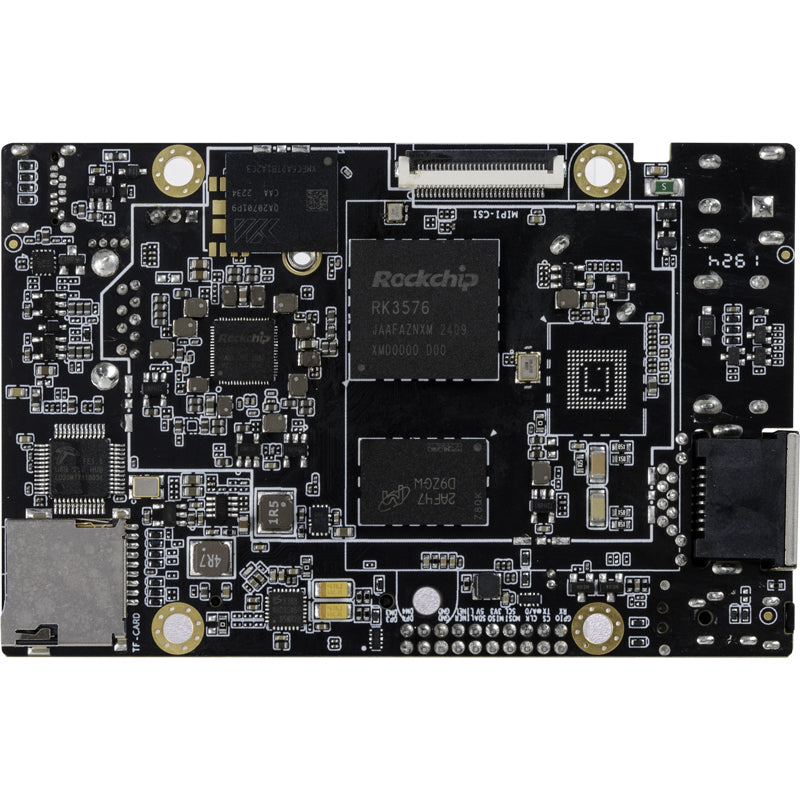

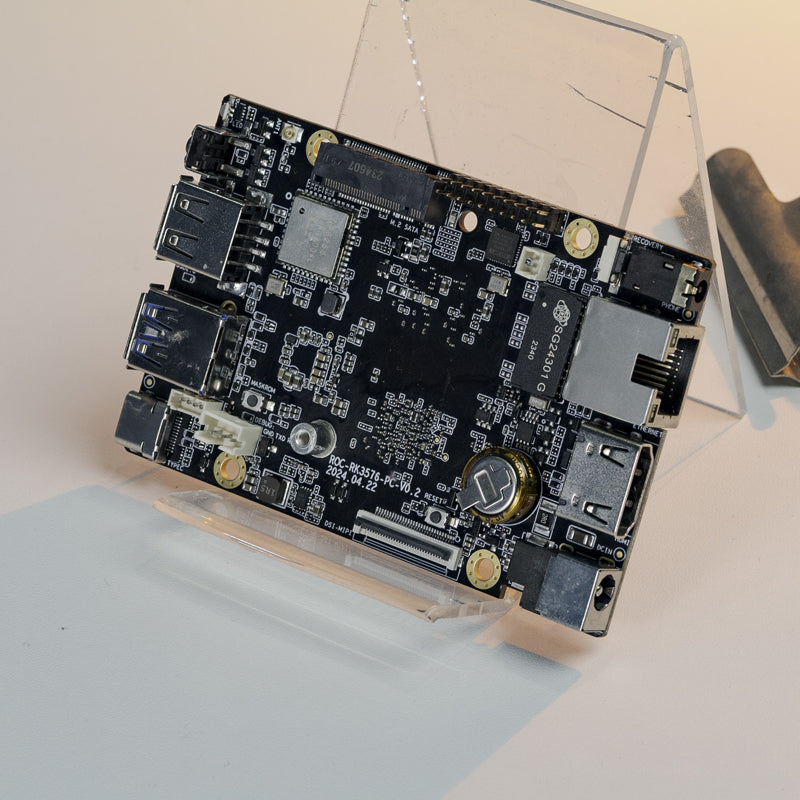

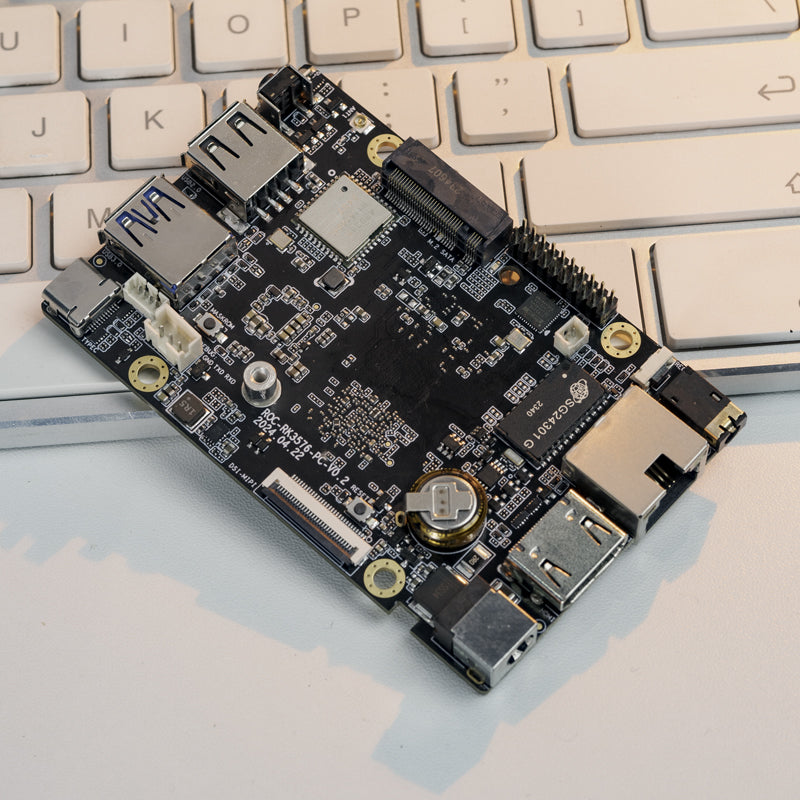

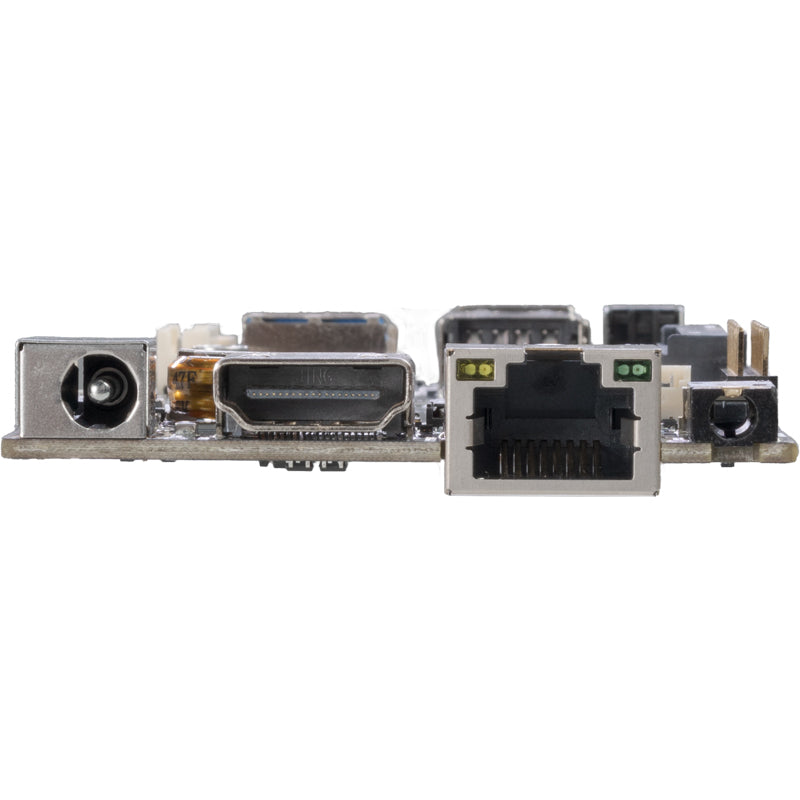

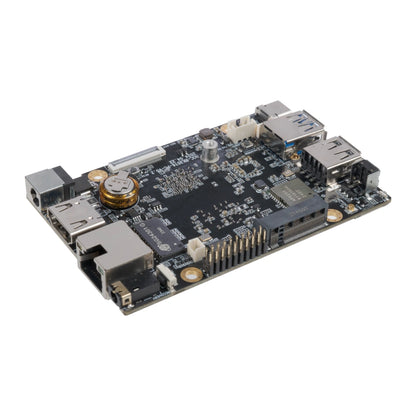

ROC-RK3576-PC is equipped with Rockchip's eight-core 64-bit AIOT processor RK3576, which adopts the big.iTTLE architecture (4xA72+4xA53) and uses advanced lithography technology to provide high performance while maintaining low power consumption. It is equipped with ARM Mali G52 MC3 GPU and 6 TOPs NPU, supports private deployment of ultra-large parameter models under the Transformer architecture, and is compatible with various deep learning frameworks, custom operator development, and Docker container management technology. Equipped with an external watchdog to ensure industrial-grade reliability, it is an ideal choice for AI applications that require local deployment.
Feature
- The Private Deployment of Large Models: Large language Models; Traditional network architectures; Docker container
- Octa-core 64-bit AIOT Processor RK3576: RK3576 is a new octa-core 64-bit high-performance AIoT processor that adopts big.LITTLE architecture (4×A72+4×A53), uses advanced lithography technology and has a main frequency of up to 2.2GHz.
- 4K@120fps High Frame Rate Video Decoding: It supports 8K@30fps/4K@120fps decoding (H.265/HEVC, VP9, AVS2, AV1) and 4K@60fps decoding (H.264/AVC), and is equipped with HDMI 2.1 (4K@120fps)/eDP1.3 (4K@60fps), DP1.4 (4K@120fps), and MIPI DSI (2560*1600@60fps) interfaces, enabling triple-display output.
- UFS 2.0 with A Data Read Speed of Up to 12 Gbps: The device supports UFS 2.0 / HS-G3 (12 Gbps), ensuring efficient data storage and access. With PCIe NVMe/SATA SSD expansion, it provides fast data read and write speeds, allowing the device to be easily expanded to TB-level storage capacity.
- 16MP ISP with Enhanced Image Processing Capabilities: The integrated 16-megapixel ISP supports low-light noise reduction, RGB-IR sensor, and up to 120dB HDR. It uses AI-ISP technology to reduce noise, improve image quality, and supports MIPI-CSI input.
- Compact Size and Rich Interfaces: Rich expansion interface options include MIPI-CSI, MIPI DSI, USB 3.0, USB 2.0, I2C, SPI, SARADC, UART, PWM, LineOut, etc. The device provides a 1000Mbps Ethernet port, 2.4/5GHz dual-band WiFi, and Bluetooth 5.0. Its compact design (90mm x 60mm in size) makes it highly adaptable to various applications.
Applications
- Edge Computing
- Digital Signage
- Industrial Embedded PC
- Cloud Terminal Products
- Automotive Electronics
| Soc | |
|---|---|
| Gpu | |
| Npu | |
| Vpu | |
| Ram | |
| Storage | |
| Power | |
| Power consumption | |
| Video input | |
| Os | |
| Software support | |
| Dimension | |
| Weight | |
| Environment | |
| Watchdog | |
| Usb | |
| Other |
| Product tutorials | Click Here |
|---|---|
| Sdk software and firmware files | Click Here |
