ROC-RK3566-PC Quad-Core ARM Mini Single Board Computer
Regular price
$339.00 USD
Regular price
Sale price
$339.00 USD
Unit price
per
Shipping calculated at checkout.
⭐️Get $10 Off (Order Over $100) - Code: TCHIP10
Couldn't load pickup availability
Regular price
$339.00 USD
Regular price
Sale price
$339.00 USD

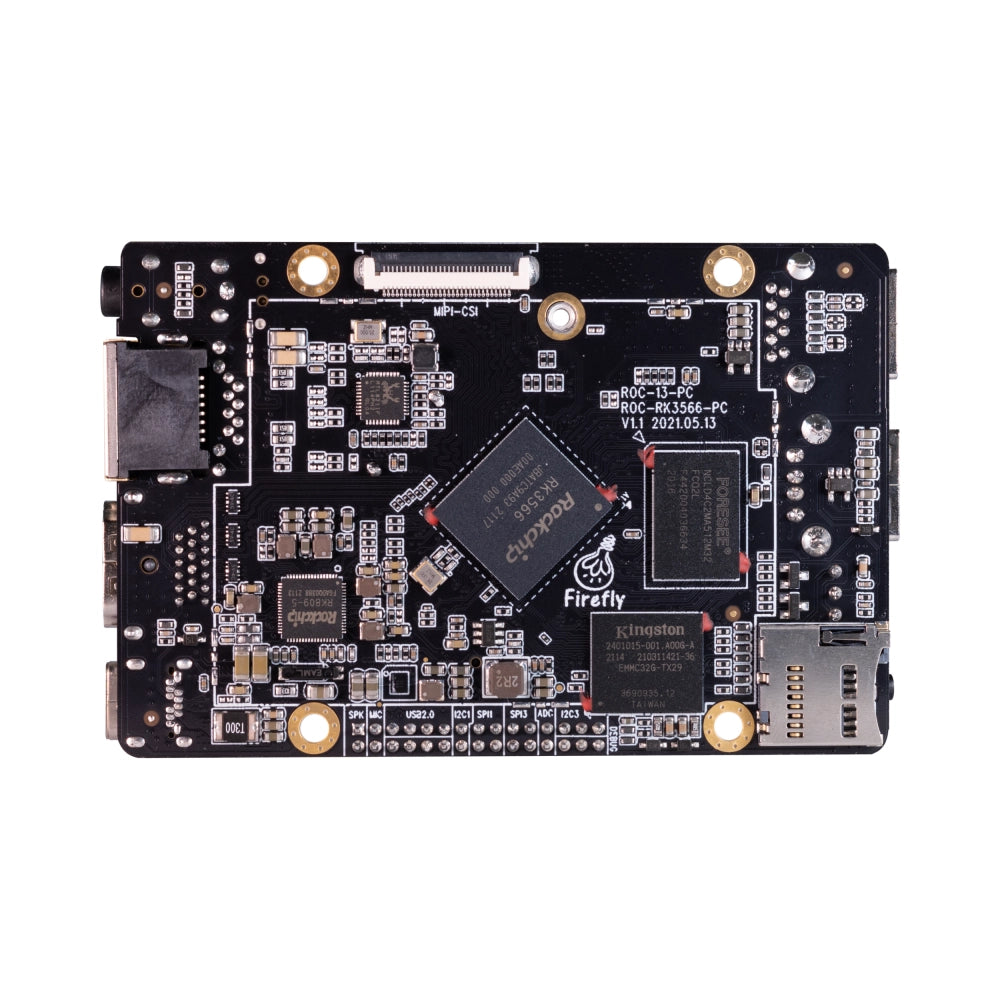

The ROC-RK3566-PC SBC is equipped with an RK3566 quad-core 64-bit processor, supports up to 8 GB of memory, and features an M.2 interface that can be expanded to accommodate a large-capacity hard disk. It supports multiple systems and startup methods, and has exclusive applications and forums, which bring endless fun to geeks and makers.
- Product Wiki: Click Here
- Product Datasheet: Click Here
Feature
- RK3566 Quad-core 64-bit Processor: RK3566 quad-core 64-bit Cortex-A55 processor, with a main frequency of up to 1.8GHz, greatly improved efficiency. Adopting 22nm photolithography process, low power consumption and high performance.
- 8GB Large RAM, All-data-link ECC: It supports up to 8GB RAM, up to 32-bit width, and full data link ECC, making data more secure and reliable, meeting the needs of running large memory product applications.
- Integrated Co-processors: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan 1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
- M.2 Interface Expansion: The onboard M.2 PCIe 2.0 interface can be connected to NVMe SSD, which has the advantages of high-speed reading and writing and large-capacity storage.
Hardware Overview
| Shipping list |
|---|
| Soc | |
|---|---|
| Cpu | |
| Gpu | |
| Vpu | |
| Ram | |
| Storage | |
| Wireless | |
| Power | |
| Display | |
| Os | |
| Dimension | |
| Environment | |
| Ethernet |
| Product tutorials | Click Here |
|---|---|
| Sdk software and firmware files | Click Here |
