ITX-3568JQ Quad-core ITX Motherboard

$299.00 USD
$299.00 USD
Shipping calculated at checkout.

⭐️Get $10 Off (Order Over $100) - Code: TCHIP10

Storage: 1G RAM+8G ROM
Spec: SoM with Carrier Board
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 47 in stock
Collections:
$299.00 USD
$299.00 USD

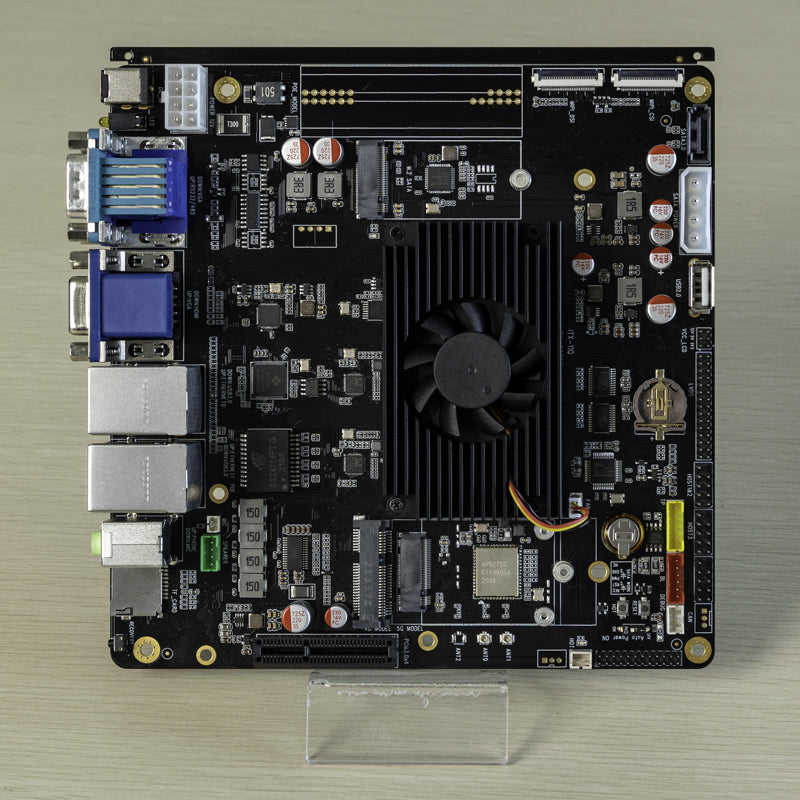

This ITX motherboard is equipped with Rockchip RK3568 series quad-core 64-bit industrial-grade processor and 8GB memory. It supports high-speed wireless networks such as WiFi 6 and 5G/4G. The BTB interface provides stronger transmission performance. The motherboard has industrial-grade stability and can operate reliably for a long time in a temperature range of -40°C to 85°C. In addition, industrial-grade and automotive-grade customization are also available.

Feature

  • Industrial-grade Processor RK3568 Series: The RK3568 series uses a quad-core 64-bit Cortex-A55 processor with a 22nm lithography process and a main frequency of up to 2.0 GHz. It has a built-in 1 TOPS NPU, supports mainstream deep learning frameworks, and provides efficient and stable performance for back-end device data processing. The motherboard provides a wealth of storage configuration options.
  • Integrated GPU, VPU, and NPU: It integrates dual-core GPU, high-performance VPU and efficient NPU. The GPU is compatible with Open GL ES 3.2/2.0/1.1 and Vulkan 1.1. The VPU provides synchronous encoding and decoding capabilities, supports single-channel 4K 60fps or eight-channel 1080P 30fps multi-format decoding, and video encoding up to 1080P 60fps. The built-in 1 TOPS NPU supports FP16/BFP16, significantly improving AI application development capabilities.
  • Support 3 Displays And Eight-camera Input: The device is equipped with rich video interfaces, including MIPI-DSI, LVDS, eDP, HDMI and MIPI-CSI, and supports triple-screen display output. This feature ensures clear visual content on multiple screens such as the center console, co-pilot seat and headrest, enabling diverse multimedia playback. The built-in 8M ISP provides security-grade image signal processing. The product can support up to eight 1080P camera inputs, making it ideal for multi-camera applications.
  • Strong Network Communication Capability: It supports dual Gigabit Ethernet (RJ45), POE (output power 60W), 2.4GHz/5GHz dual-band WiFi 6, 802.11a/b/g/n/ac/ax protocols, Bluetooth 5.0, and can expand 5G/4G LTE wireless communication.

Soc

RK3568J,Up to 1.4GHz

Quad-core 64-bit Cortex-A55 processor, 22nm lithography process
Gpu

ARM G52 2EE , supporting OpenGL ES 1.1/2.0/3.2 , OpenCL 2.0 , Vulkan 1.1

A built-in high-performance 2D acceleration hardware
Npu

Integrated with an AI accelerator RKNN NPU, 1.0 Tops@INT8 (commercial), 512MAC NPU (industrial and automotive)

Support framework switching of Caffe/TensorFlow/TFLite/ONNX/PyTorch/Keras/Darknet
Vpu

4K@60fps H.265/H.264/VP9 video decoding (or 8-channel 1080P 30fps multi-format decoding)

1080P@60fps H.265/H.264 video encoding
Ram

LPDDR4 (1GB/2GB/4GB/8GB)
Storage

eMMC (8GB/16GB/32GB/64GB/128GB optional), 16 MB SPI Flash
Pcie

1 × PCIe 3.0 (2 lanes), capable of extending to standard PCIe 3.0 device.
Sata

1 × SATA 3.0 standard interface

1 × M.2 SATA 3.0 (2242 SATA SSD expansion)
Power

Power supply ways:

DC 12V input (DC 5.5×2.1mm, 12V/1.5A or higher recommended)

Computer case with 12V input (standard ATX power interface)

POE 48V power input (up to 60W)
Display

1 × HDMI 2.0, supporting 4K@60 Hz

1 × MIPI DSI, supporting single-channel 1920 * 1080@60fps

1 × LVDS display interface (via pin headers)

2 × VGA (1080P)

* Support up to three displays
Camera

1 × MIPI CSI (capable of configuring a single-channel (4 lanes) or a dual-channel (2 lanes))
Audio

1 × HDMI audio output

1 × 3.5mm headphone audio output

1 × Speaker output (10W-8Ω class D)
Os

Support Android 11.0, Ubuntu 18.04, Ubuntu 20.04, and RTLinux
Dimension

17cm×17cm (standard Mini-ITX), compatible with standard ITX computer cases
Weight

≈ 400g (without peripherals)
Environment

Temperature: -40℃ ~ 85℃

Humidity: 10%～90%RH (non-condensing)
Usb

4 × USB 3.0 (current limiting: 1A)

4 × USB 2.0 (three of them via the mainboard’s pin header) (current limiting: 500mA)
Other

RS485, RS232, I2C, CAN, UART, ADC, GPIO, Debug, FAN, MIC
Product tutorials Click Here
Product datasheet Click Here
Sdk software and firmware files Click Here
