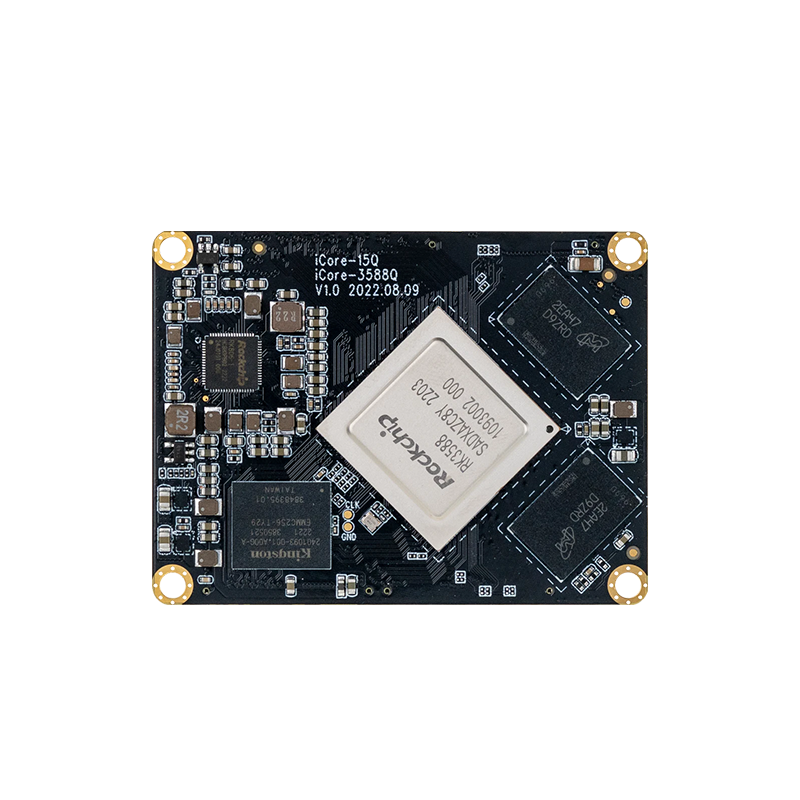

iCore-3588Q 8K AI System on Module

$189.00 USD
$219.00 USD $189.00 USD
-14%
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 4G RAM+32G ROM
Spec: System on Module
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 98 in stock
Collections:
iCore-3588Q 8K AI System on Module
$189.00 USD
$219.00 USD $189.00 USD

The iCore-3588Q is powered by Rockchip's flagship RK3588 octa-core 64-bit ARM processor, supporting up to 32GB RAM and 8K video encoding/decoding. Featuring a BTB interface for high-speed transmission, it offers rich connectivity including multi-drive support, Gigabit Ethernet, Wi-Fi 6, 5G/4G expansion, and multi-display outputs. With multi-OS compatibility, it is ideal for ARM PCs, edge computing, cloud servers, and smart NVR systems.

Feature

  • New-gen AIoT SoC - RK3588S Series: The Rockchip RK3588 is a next-generation flagship AIoT SoC built on an advanced 8nm process, delivering powerful performance with its octa-core 64-bit CPU (up to 2.4GHz). It integrates an ARM Mali-G610 MP4 GPU and a high-efficiency NPU offering 6 TOPS of AI computing power, along with a 48MP ISP supporting HDR and 3DNR for enhanced imaging.
  • Real 8K Experience: Engineered for premium multimedia experiences, this SoM delivers true 8K@60fps VP9 decoding with stunning clarity and detail. It features full support for OpenGL ES 3.2, OpenCL 2.2, and Vulkan 1.2, alongside a dedicated 2D hardware engine for ultra-smooth rendering. Perfect for high-end displays, AI-driven applications, and immersive viewing, it meets the most demanding visual and processing needs.
  • Multi-channel Input and Output: The SoM has HDMI 2.1/eDP1.3/MIPI-DSI/DP1.4/BT.1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DVP video input interface, supports multi-channel 8K video output and 4K video input, can realize up to seven-screen display, provides up to 16-channel 1080P@30fps cameras, and 4, 6, and 8-channel wide-angle seamless stitching.
  • Firm and Tight Board-to-Board Interface: The SoM uses high-speed industrial-grade connectors with high reliability and stability. The BTB interface connection is tight and firm, and can be easily installed on the backplane.

Hardware Overview

Soc

RK3588 Up to 2.4GHz

Octa-core 64-bit (4*Cortex-A76+4*Cortex-A55)
Gpu

ARM Mali-G610 MP4 quad-core GPU, Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
Npu

Up to 6TOPs (INT8)，Support INT4/INT8/INT16 mixed operations
Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Vpu

Hardware decoding:

  • 8K@60fps H.265/VP9/AVS2
  • 8K@30fps H.264 AVC/MVC
  • 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware encoding:

  • 8K@30fps H.265 / H.264
Ram

LPDDR4/LPDDR4x(4GB/8GB/16GB, up to 32GB)
Storage

eMMC (32GB/64GB/128GB/256GB optional)
Sata

3 x SATA3.0
Power

5V (voltage tolerance ± 5%)
Power consumption
  • Idle: ≈0.032W (4.0V / 8mA)
  • Typical: ≈0.84W (4.0V / 210mA)
  • Max: ≈11.2W (4.0V / 2.8A)
Video output
  • 2 x HDMI2.1 (8K@60fps or 4K@120fps, shared with eDP)
  • 2 x MIPI-DSI (4K@60fps)
  • 2 x DP1.4 (8K@30fps, shared with USB 3.0)
  • 1 x BT.1120 (1080P@60fps)
Video input
  • 1 x HDMI-IN (4K@60fps), supporting HDCP 2.3, 2 x MIPI CSI (4 lanes) or 4*MIPI CSI (2 lanes) or 1 x MIPI CSI (4 lanes) + 2*MIPI CSI (2 lanes)
  • 2 x MIPI DC (4-lane DPHY v2.0 or 3-lane CPHY V1.1),
  • 1 x DVP (up to 150MHz data input)

*Support multi-channel 8K video output and 4K video input. Up to seven displays can be achieved.
Audio output
  • 2 x I2S(8 lanes)
  • 2 x I2S (2 lanes)
  • 2 x SPDIF
  • 2 x PDM (8 lanes, supporting multi-Mic array)
  • 1 x dual-channel digital audio codec (16-bit DAC)
  • 1 x VAD
Audio output
  • 2 x I2S(8 lanes)
  • 2 x I2S (2 lanes)
  • 2 x SPDIF
  • 2 x PDM (8 lanes, supporting multi-Mic array)
  • 1 x dual-channel digital audio codec (16-bit DAC)
  • 1 x VAD
Os

Android, Linux OS
Dimension

66 mm x 50 mm
Environment
  • Operating temperature: -20℃～60℃
  • Operating humidity: 10%～90%RH(non-condensing)
Network

PCIe3.0/GMAC/SDIO3.0/USB3.1 (Gen1), capable of multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE expansion
Connector

BTB connector (3 * BTB Socket (80Pin)+ 1 x BTB Socket (100Pin))
Watchdog

Independent watchdog
Usb
  • 3 x USB3.1 (Gen1)
  • 2 x USB2.0 Host
  • 2 x USB2.0 OTG
Other
  • 9 x I2C
  • 10 x UART
  • 5 x SPI
  • 4 x ADC
  • 16 x PWM
  • 1 x SDMMC
  • GPIOs
  • 3 x CAN (not supported by iCore-3588MQ)
