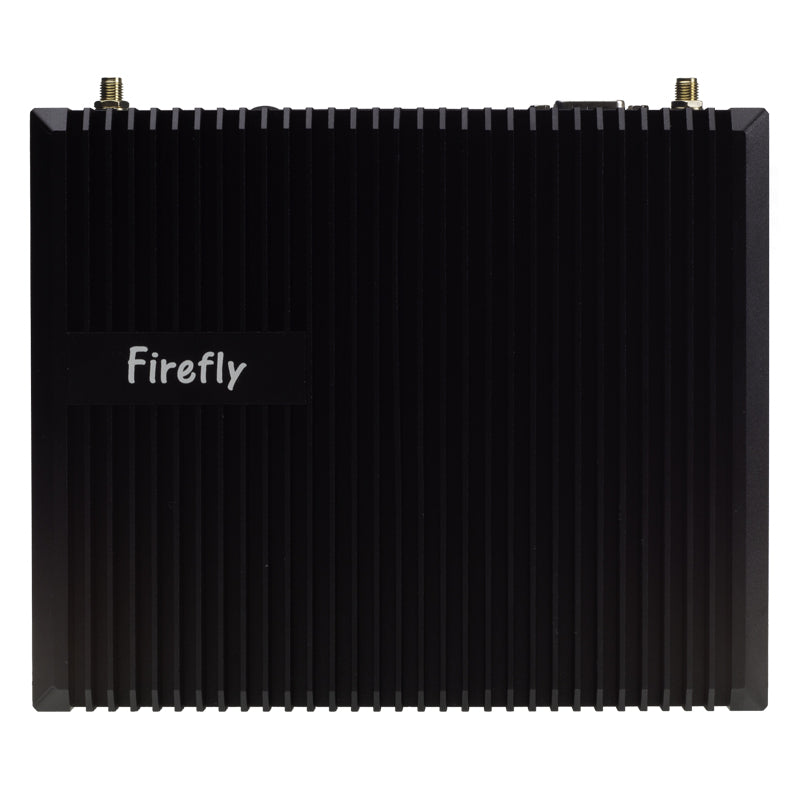

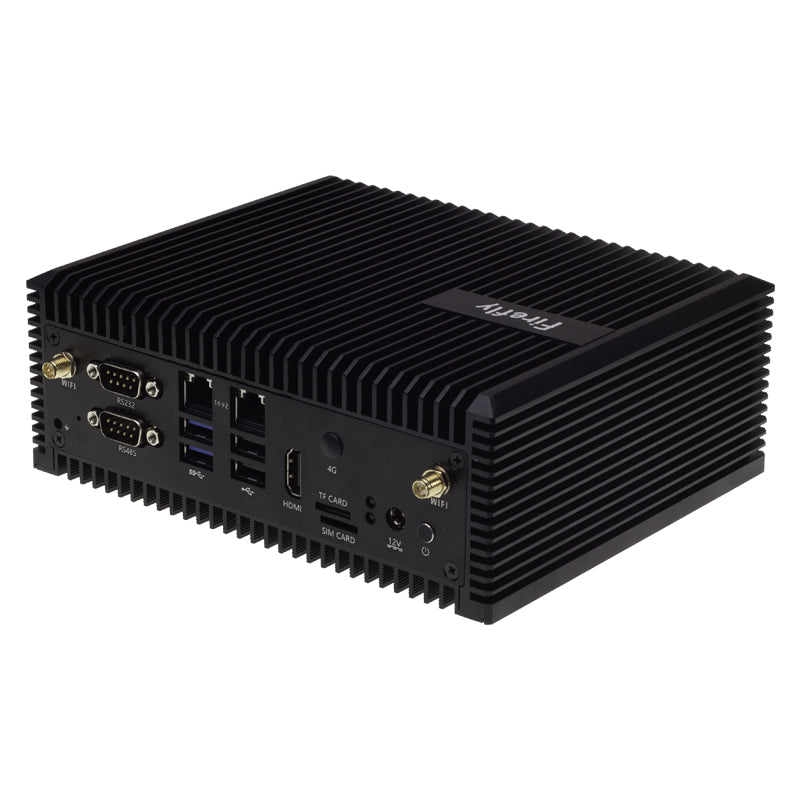

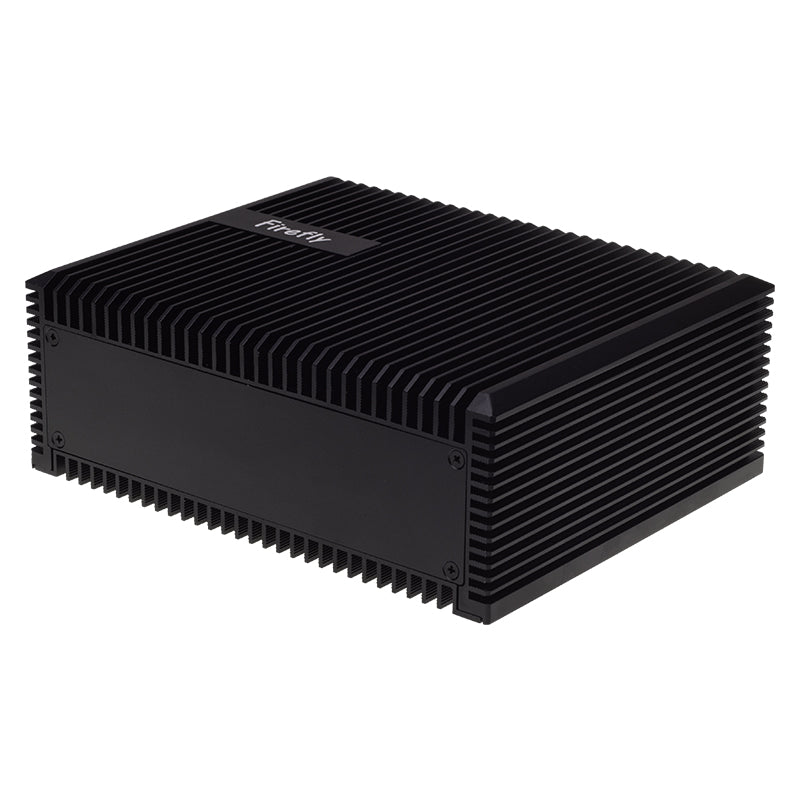

EC-A1684XJD4 FD ARM Fanless Industrial PC

$849.00 USD
$849.00 USD
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 16G RAM+64G ROM
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 5 in stock
Collections:
$849.00 USD
$849.00 USD

EC-A1684XJD4 FD uses SOPHON AI processor BM1684X, which can be configured with 16GB of memory; INT8 computing power is up to 32TOPS, supports mainstream programming frameworks, has a complete toolchain, is easy to use, and has low algorithm migration cost; it is suitable for a variety of AI computing scenarios such as visual computing, edge computing, general computing services, smart transportation, smart classrooms, unmanned supermarkets, monitoring, and security, etc.

Soc

SOPHON BM1684X
Cpu

High-performance octa-core ARM A53, 12nm lithography process, frequency up to 2.3GHz
Tpu
  • Built-in tensor computing module TPU, computing power up to: 32TOPS (INT8), 16TFLOPS (FP16/BF16), 2TFLOPS (FP32)
  • Support mainstream programming frameworks: TensorFlow/Caffe/PyTorch/Paddle/ONNX/MXNet/Tengine/DarkNet
Vpu

32-channel H.265/H.264 1080p@25fps video decoding

32-channel 1080P@25fps HD video processing (decoding + AI analysis)

Support 12-channel H.265/H.264 1080p@25fps video encoding
Ram

6GB/12GB/16GB LPDDR4/LPDDR4X
Storage

32GB/64GB/128GB eMMC, 128MB SPI Flash, 1 x M.2 SATA3.0 (Inside the computer. Capable of 2242 SSD expansion), 1 x TF card slot
Power

DC 12V/5A (DC5.5×2.5mm)
Video output

1 x HDMI（1080p@30fps）
Audio output

1 x HDMI audio output
Audio output

1 x HDMI audio output
Os

Linux
Dimension

182.5 mm x 150.0 mm x 66.5mm
Weight

≈ 1.8kg
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Operating Humidity: 10%～90% (non-condensing)
Wireless network

2.4GHz/5GHz dual-band WiFi, 802.11a/b/g/n/ac, capable of 4G LTE expansion (Mini PCIe), 5G (M.2)
Ethernet

2 x 1000Mbps Ethernet

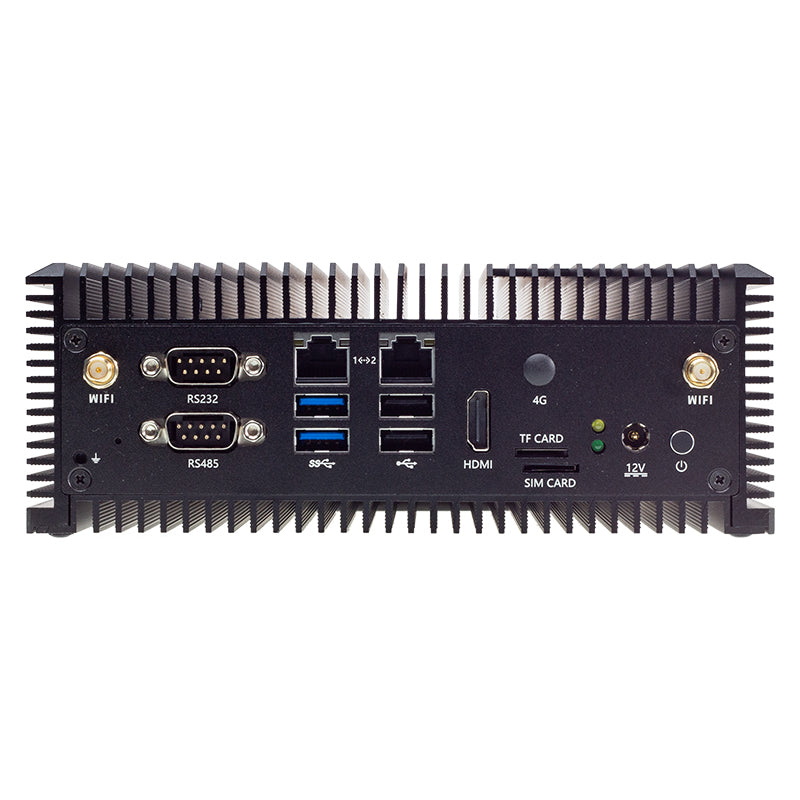

Other interface

1 x RS232, 1 x RS485
Usb
  • 2 x USB3.0 (current limit: 1A)
  • 2 x USB2.0 (current limit: 500mA)
Product tutorials Click Here
Sdk software and firmware files Click Here
