CSC2-N48 Edge Computing 2U Server

Regular price $19,789.00 USD
Regular price Sale price $19,789.00 USD
Shipping calculated at checkout.

⭐Get 5% Off (First Order) - Code: TCHIP5

Spec: RK3588SJD4 AI (16G+32G)
  • American Express
  • Bancontact
  • Google Pay
  • iDEAL
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: Out of stock
Regular price $19,789.00 USD
Regular price Sale price $19,789.00 USD

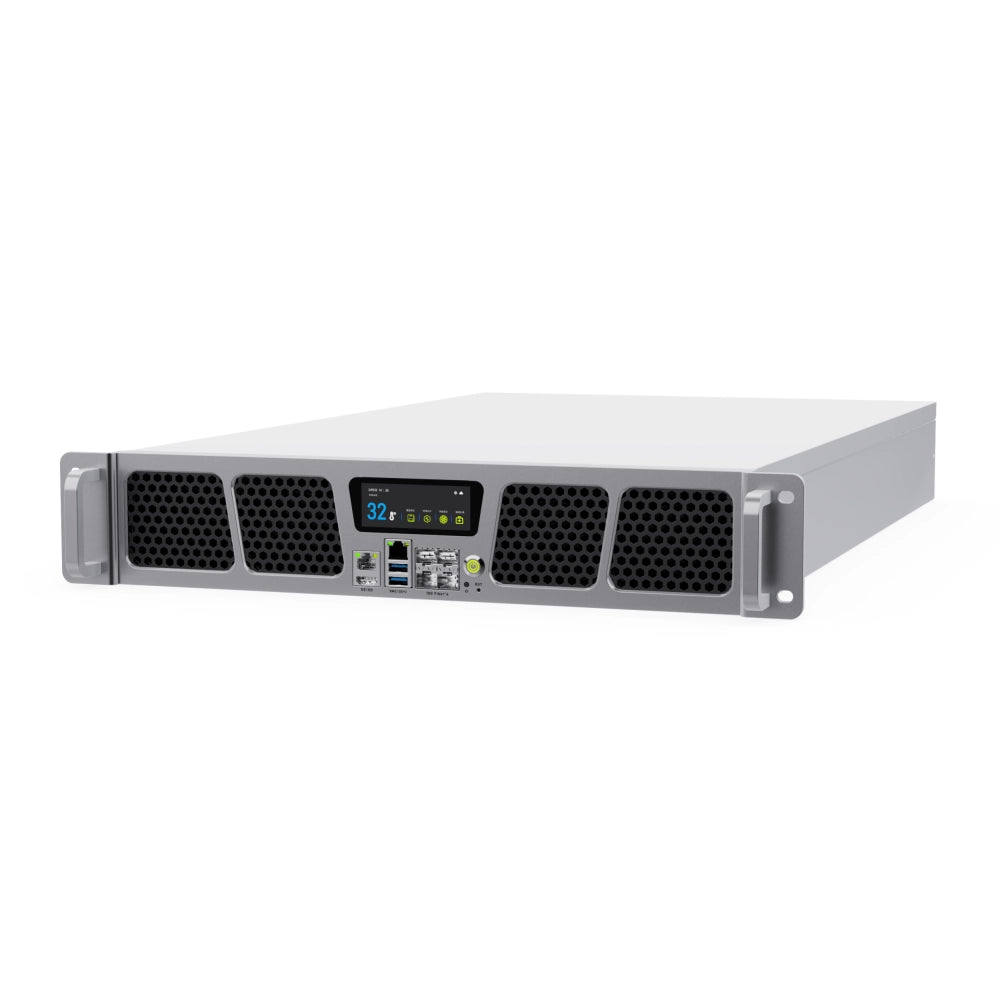

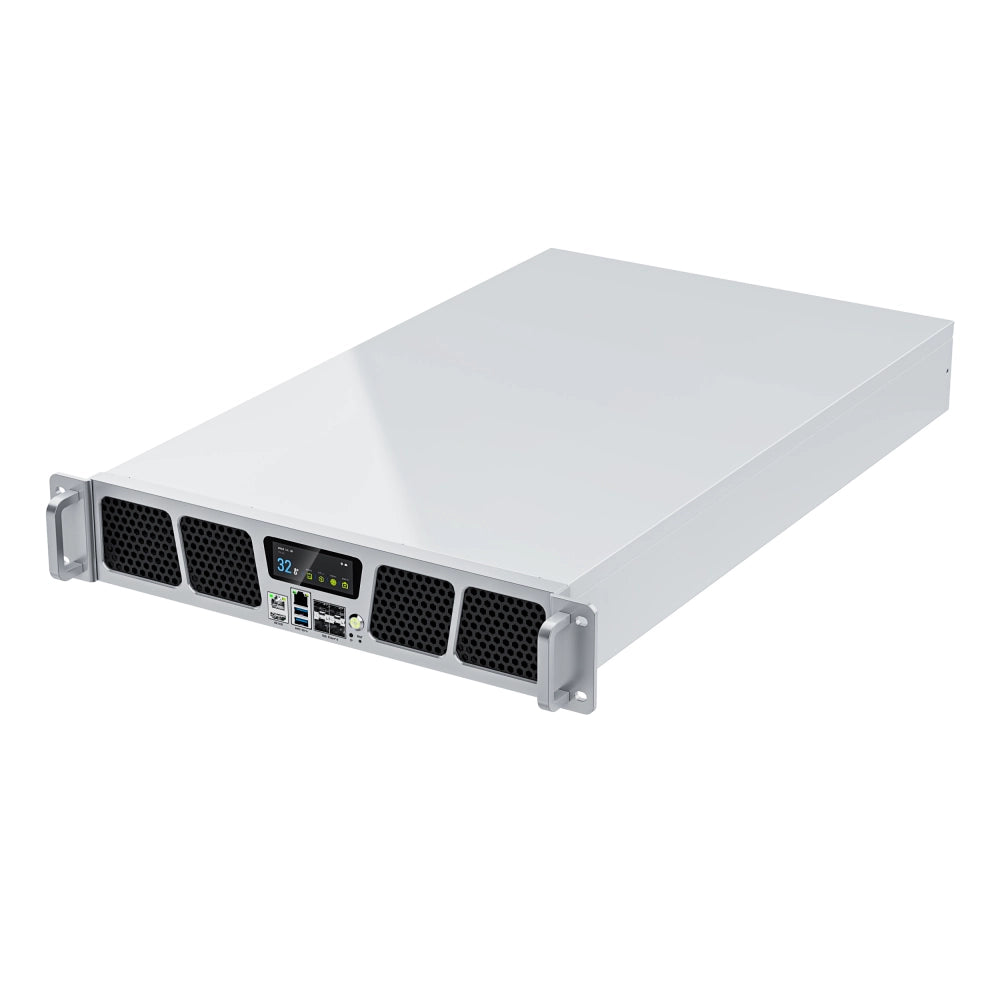

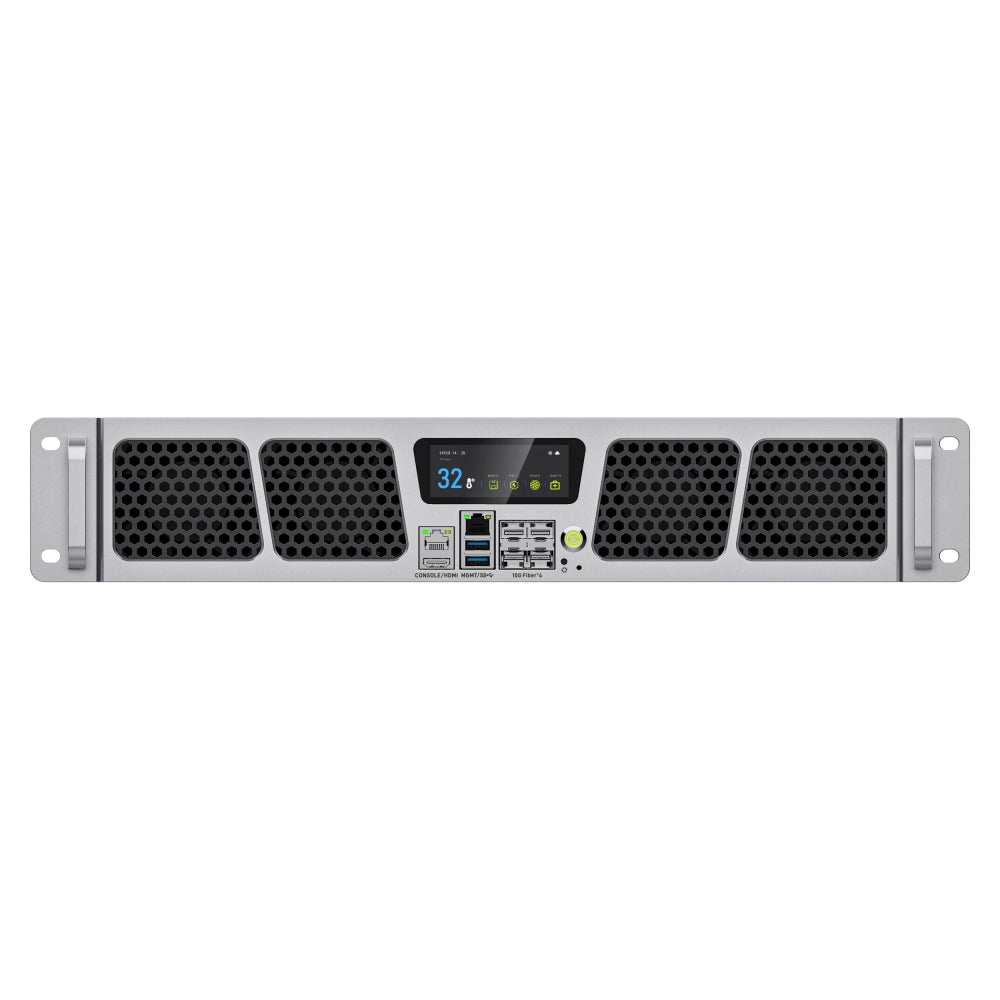

The CSC2-N48 is a high-density 2U cluster server featuring 48 computing nodes that deliver up to high AI performance. Supporting NVIDIA Jetson and Rockchip platforms, it is purpose-built for private large model deployment (e.g., DeepSeek, Llama), edge computing, and high-speed data processing with integrated aBMC management.

Feature

  • Built-in 48 Computing Nodes: Server integrates 48 distributed computing nodes supporting multiple processor platforms (Rockchip / SOPHGO / NVIDIA) , with each node delivering 6~157 TOPS computing power. This scalable configuration provides powerful AI and deep learning acceleration capabilities.
  • Private Deployment of Large Models: Enables on-premises deployment of leading large language models (Deepseek-R1, Llama, Qwen), vision models (SAM, ViT), and image generation models (Flux, Stable Diffusion).
  • Configure aBMC Management System: Includes aBMC intelligent management system for: Real-time monitoring, Software/hardware configuration, Troubleshooting, Alert notification, System upgrades, Remote maintenance, Supports secondary development for customization.
  • Scalable M.2 PCIe NVMe SSD: Features 48 onboard M.2 PCIe interfaces supporting NVMe 2280 SSD expansion, enabling massive high-speed storage capacity. Delivers significantly improved data throughput to meet high-density storage requirements, with scalable capacity up to TB-level.

Product Overview

Server form

2U rackmount computing power server

Number of nodes

48 distributed computing nodes + 1 control node

Compute nodes

RK3588S: Octa-core 64-bit processor RK3588S, up to 2.4GHz

BM1684X: Octa-core 64-bit processor BM1684X, up to 2.3GHz

Jetson Orin Nano (8GB): Hexa-core 64-bit processor NVIDIA Jetson Orin Nano, up to 1.7GHz

Jetson Orin NX (16GB): Octa-core 64-bit processor NVIDIA Jetson Orin NX, up to 2.0GHz

Control nodes

Octa-core 64-bit processor RK3588, with a maximum clock speed of 2.4GHz and a peak computing power of 6TOPS

Ai computing power

RK3588S: 288T (6T × 48,INT8)

BM1684X: 1536T (32T × 48, INT8)

Jetson Orin Nano (8GB): 3216T (67T × 48, INT8)

Jetson Orin NX (16GB): 7536T (157T × 48INT8)



Fan module

12 high-speed cooling fans

Bmc

Integrated BMC management system based on web management interface, supports monitoring, configuration, alarming, remote operation and maintenance, virtual replacement management, and provides CLI command line and Redfish and other tools to facilitate secondary development.

Large model

All models support the privatization of ultra-large-scale parametric models under the Transformer architecture, such as Deepseek-R1 series, Gemma series, Llama series, ChatGLM series, Qwen series, Phi series and other large language models

BM1684X: Support the privatization deployment of large visual models such as ViT, Grounding DINO, SAM, etc.

Jetson Orin Nano/Jetson Orin NX: Supports the privatization deployment of large vision models such as EfficientVIT, NanoOWL, NanoSAM, SAM, TAM, etc.

BM1684X/Jetson Orin Nano/Jetson Orin NX: Support the private deployment of Flux, Stable Diffusion, and Stable Diffusion XL image generation models

Deep learning

All models: Supports traditional network architectures such as CNN, RNN, LSTM, and supports a variety of deep learning frameworks, including TensorFlow, PyTorch, PaddlePaddle, ONNX, Caffe, etc. Support custom operator development and Docker containerization management technology
Jetson Orin Nano/Jetson Orin NX: Support Ollama local large model deployment framework and ComfyUI graphical deployment framework

Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)

Ram

RK3588S: 16GB LPDDR5 × 48 (4/8/16/32GB)

BM1684X: 8GB LPDDR4 × 48 (8/12/16GB)

Jetson Orin Nano (8GB): 8GB LPDDR5 × 48

Jetson Orin NX (16GB): 16GB LPDDR5 × 48




Storage

RK3588S: 256GB eMMC × 48 (16/32/64/128/256GB)

BM1684X: 32GB eMMC × 48 (32/64/128GB)

Jetson Orin Nano/NX: None

Storage expansion

RK3588S/BM1684X: 2280 PCIe NVMe SSD × 48 (Optional)

Jetson Orin Nano/NX: 256GB (2280 PCIe NVMe SSD, the server is internally assembled)

Power

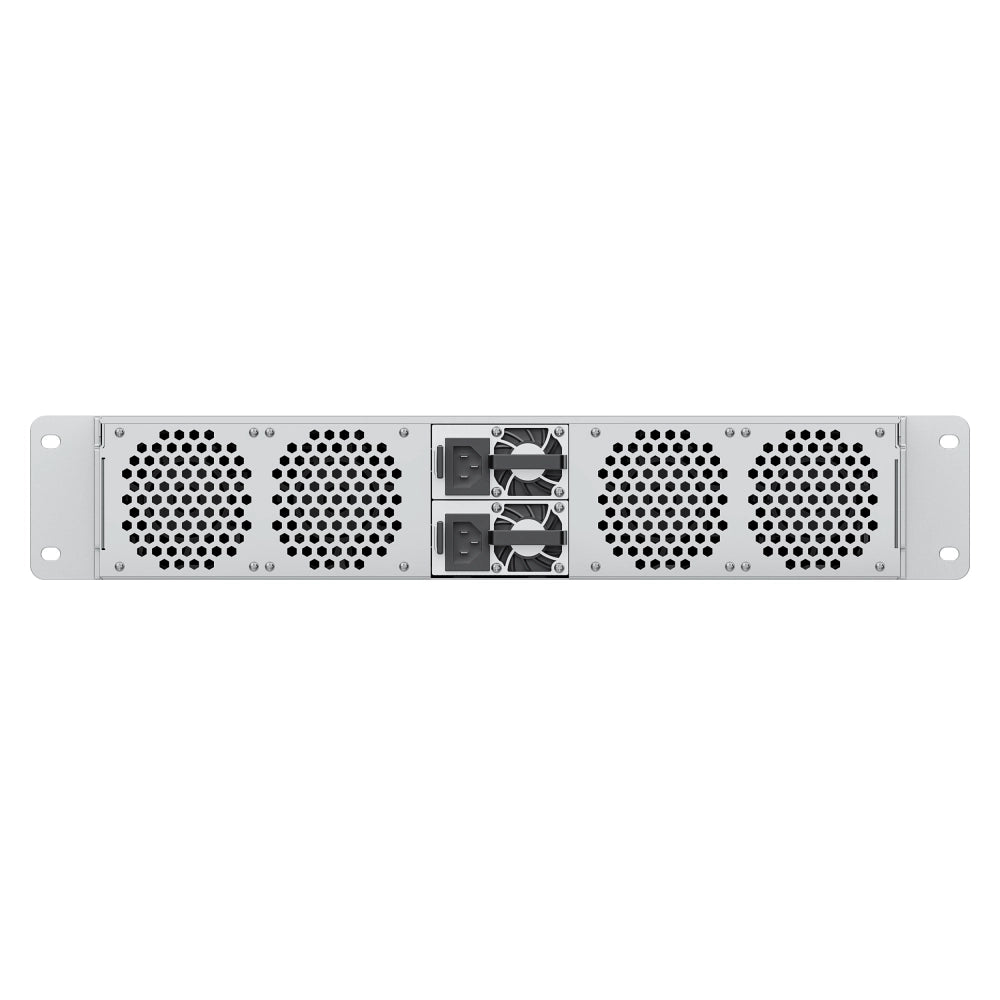

2 AC redundant power supplies (Hot-swappable supported)

Display

1 × HDMI (Maximum resolution 1080P, BMC management display)

Dimension

724.0mm (L) × 430.0mm (W) × 88.8 mm (H)

Weight

Net weight of the server: 23.1kg, total weight with packaging: 25.3kg

Environment

Operating Temperature: 0ºC ~ 35ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)

Internet

4 × 10G Ethernet (SFP+), 1 × Gigabit Ethernet (RJ45, MGMT used as BMC management network)

Usb

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG using a USB flash drive)

Button

1 × Reset button, 1 × Power button, 1 × Restart BMC button
