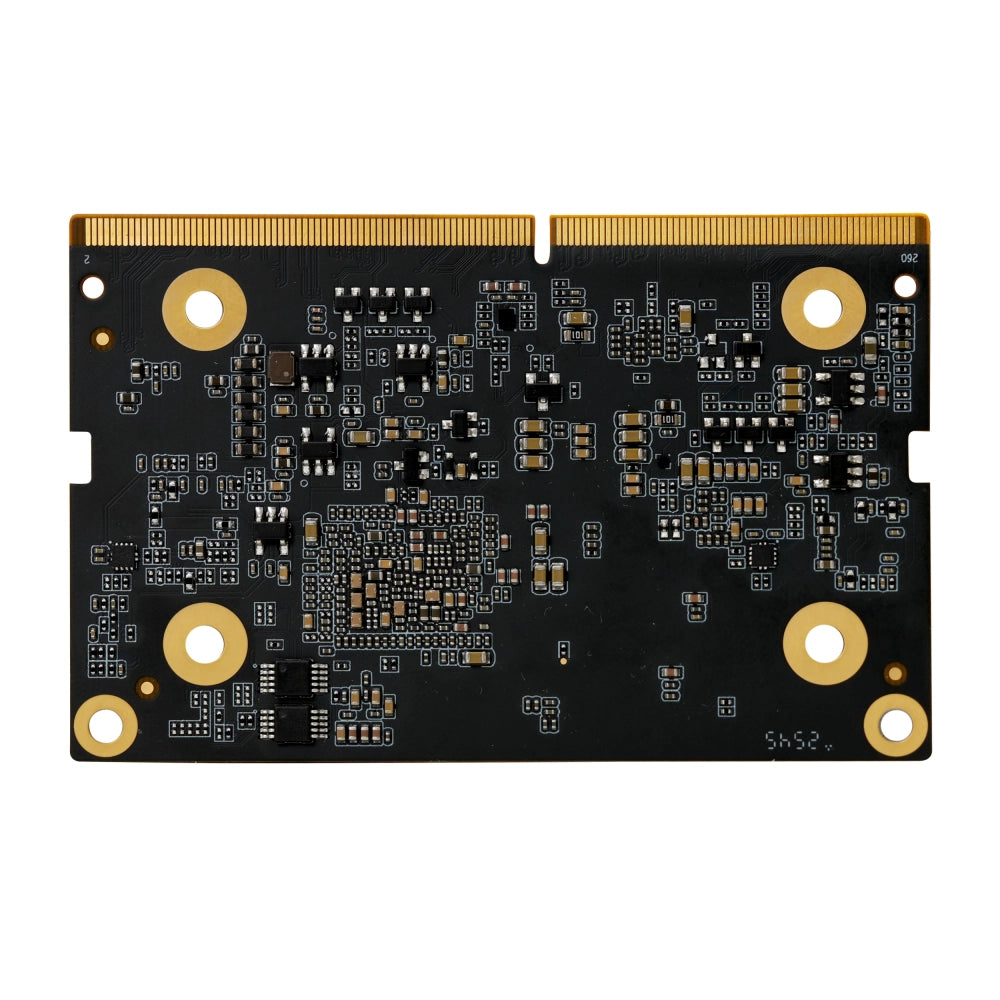

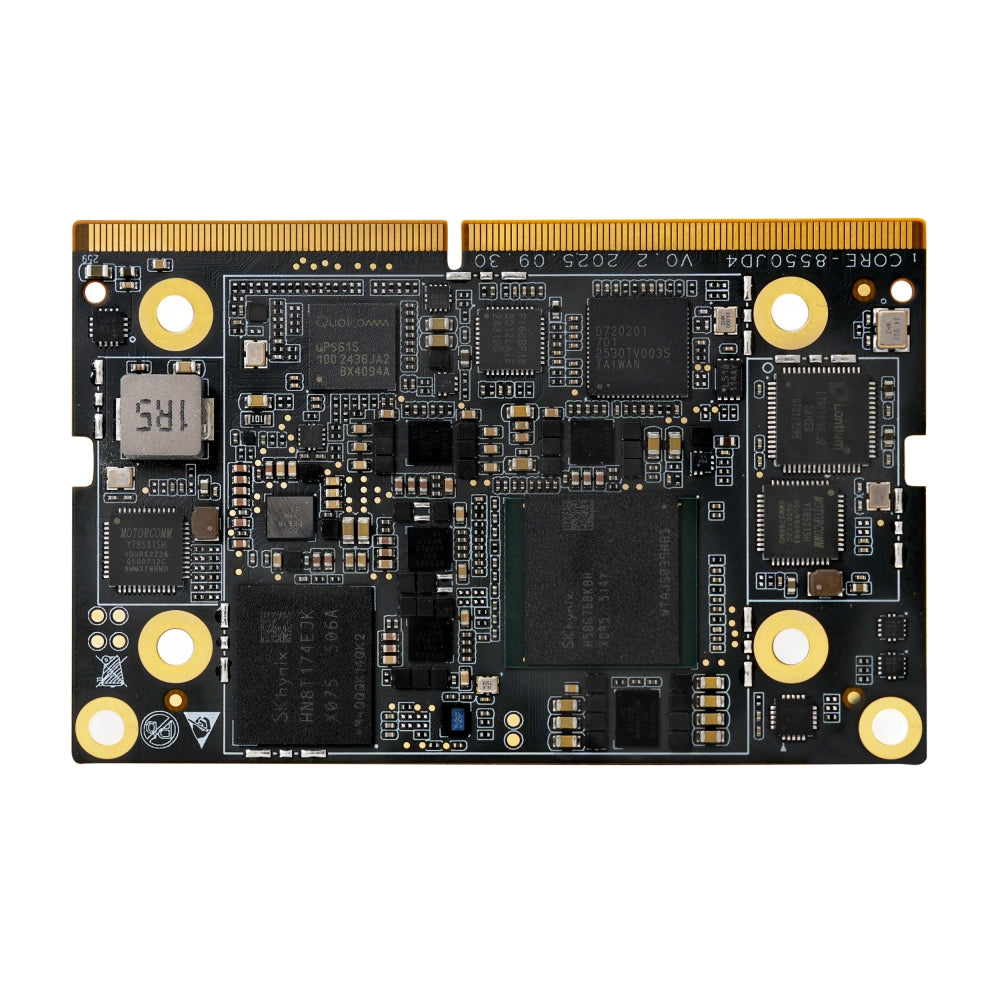

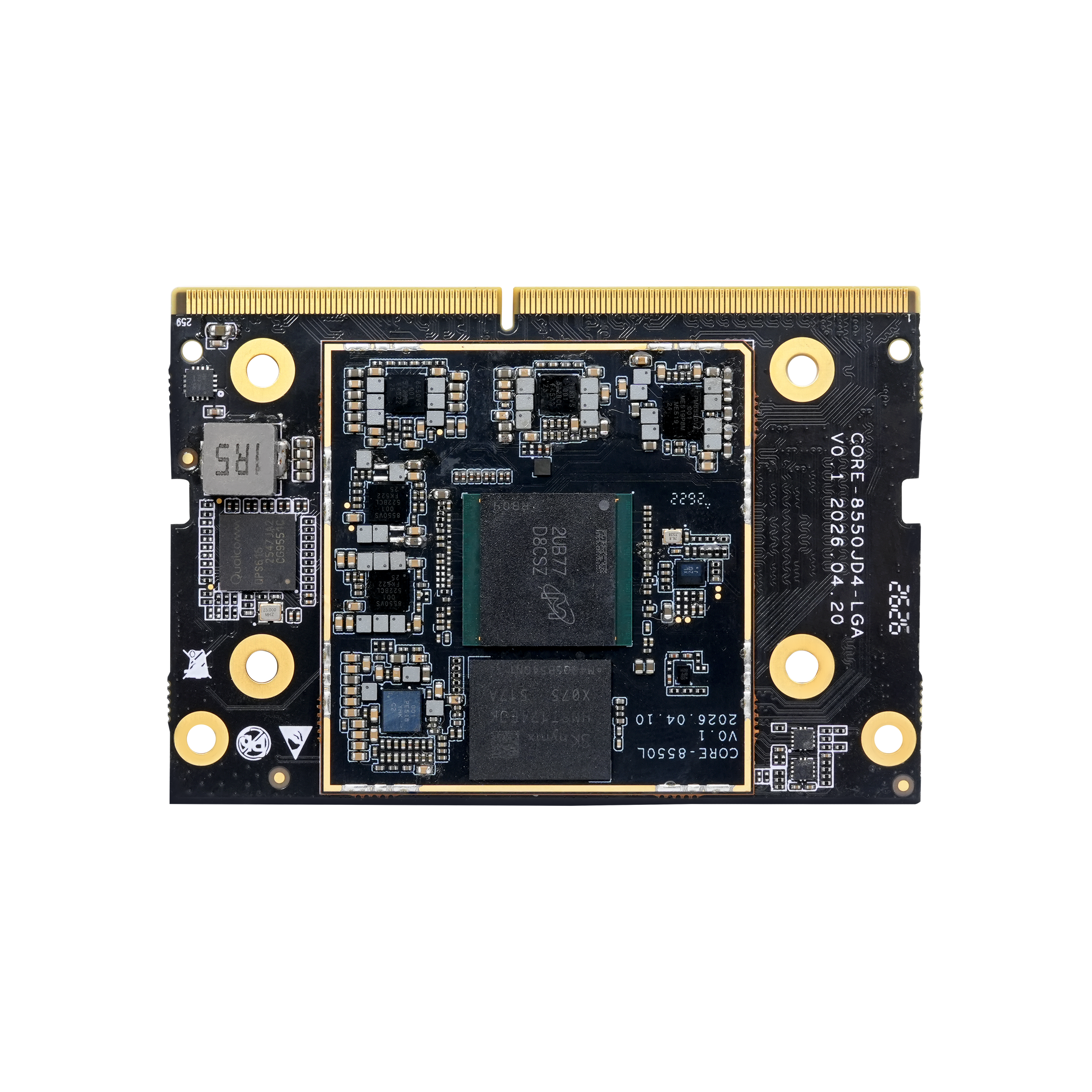

CORE-8550JD4 QCS8550 AI SoM
$579.00 USD
$579.00 USD

The CORE-8550JD4 is powered by a Qualcomm QCS8550 AI processor with a 48-tops NPU, supporting mainstream AI models. It also utilizes an Adreno 740 GPU for ray tracing and 8K video processing. The cognitive ISP supports up to 100MP single cameras or 36MP triple cameras. All components are integrated into a compact design and feature a 260-pin edge connector.

Feature

  • AI Processor QCS8550: The QCS8550 uses an octa-core Kryo CPU based on the ARM architecture, with a clock speed of up to 3.36 GHz.
  • Ray Tracing: Equipped with an Adreno 740 GPU, it provides full ray tracing support and is compatible with OpenGL ES 3.2, Vulkan 1.2, and OpenCL 3.0, and incorporates Hexagon Neural Processing technology.
  • 8K Video Encoding & Decoding: Supports advanced video processing for 8K@60fps/4K@240fps decoding and 8K@30fps/4K@120fps encoding.
  • Cognitive ISP with 36MP Triple Camera: Equipped with Qualcomm Spectra Cognitive ISP, featuring three 18-bit ISPs and two DPHY 1.2/CPHY 2.0 interfaces, it supports flexible camera configurations, up to three 36MP, two 64MP+36MP, or a single 108MP setup for multi-stream vision systems.
  • 4nm Low-Power Design: Manufactured using a 4nm process, it boasts high efficiency and stable performance. It is compatible with the NVIDIA Jetson Orin NX/Nano hardware interface.

Product Overview

Video coding
  • Video decoding: 8K@60fps/4K@240fps H.265/H.264/VP9/AV1
  • Video encoding: 8K@30fps/4K@120fps H.265/H.264
  • Supports concurrent 4K@60fps decoding and 4K@60fps encoding for wireless display scenarios
Soc

Qualcomm QCS8550
Cpu

Qualcomm Kryo® CPU: Octa-core 64-bit (1×GoldPlus@3.2GHz + (2+2)Gold@2.8GHz + 3×Silver@2.0GHz), 4nm advanced process, maximum frequency up to 3.36GHz
Gpu

Adreno 740 GPU: Supports ray tracing technology, OpenGL ES 3.2, Vulkan 1.2, full-profile OpenCL 3.0, and Adreno NN Direct
Npu

Dual eNPU V3: Equipped with 4 HVX (Hexagon Vector Extensions), 1 HMX (Hexagon Matrix Extension); Computing power up to 48 TOPS (INT8), 12 TOPS (FP16)
Ram

16GB LPDDR5x
Storage

256GB UFS4.0
Pcie

1 × PCIe3.0 (2lanes), 1 × PCIe4.0 (2lanes)
Power

5V (voltage tolerance ±5%)
Power consumption

Normal: 3W(5V/600mA), Max: 10W(5V/2000mA), Min(Sleep): 0.4W(5V/80mA)
Video output

1 × HDMI2.0 (4K@60Hz), 1 × DP1.4 (via Type-C output)
Audio input

2 × MIPI D/C PHY (4 lanes DPHY or 3 trios CPHY) + 2 × MIPI D/C PHY (2 lanes DPHY or 1 trio CPHY)
Supports 36MP triple camera / 64MP + 36MP dual camera / 108MP single camera
Audio

2 × I2S (2 data channels per channel; supports 4-channel TX/RX, TDM/PCM modes, 48kHz sampling rate)
Os

Ububtu
Software support
  • Supports local deployment of large-scale parametric models based on the Transformer architecture (such as the Deepseek-R1 series, Gemma series, Llama series, Qwen series, Phi series, and other large language models).
  • Supports the QNN AI inference framework, as well as various deep learning frameworks including TensorFlow, TensorFlow Lite, PyTorch, and ONNX.
Dimension

69.6mm × 45.0mm × 4.3mm
Weight

≈16g
Environment

Operating Temperature: -20℃～60℃, Storage Temperature: -20℃～70℃, Operating Humidity: 10%～90%RH (No condensation)
Ethernet

Supports 2×Gigabit Ethernet (via PCIe expansion; onboard Ethernet PHY chip on core board); 5G/4G expandable
Usb

1 × USB3.1 Gen2 DRD with DP, 2 × USB3.0 HOST (via PCIe expansion)
Other

3 × CCI I2C, 2 × I3C/I2C, 2 × SPI, 4 × UART, 1 × ADC, 1 × SDMMC, GPIOs
