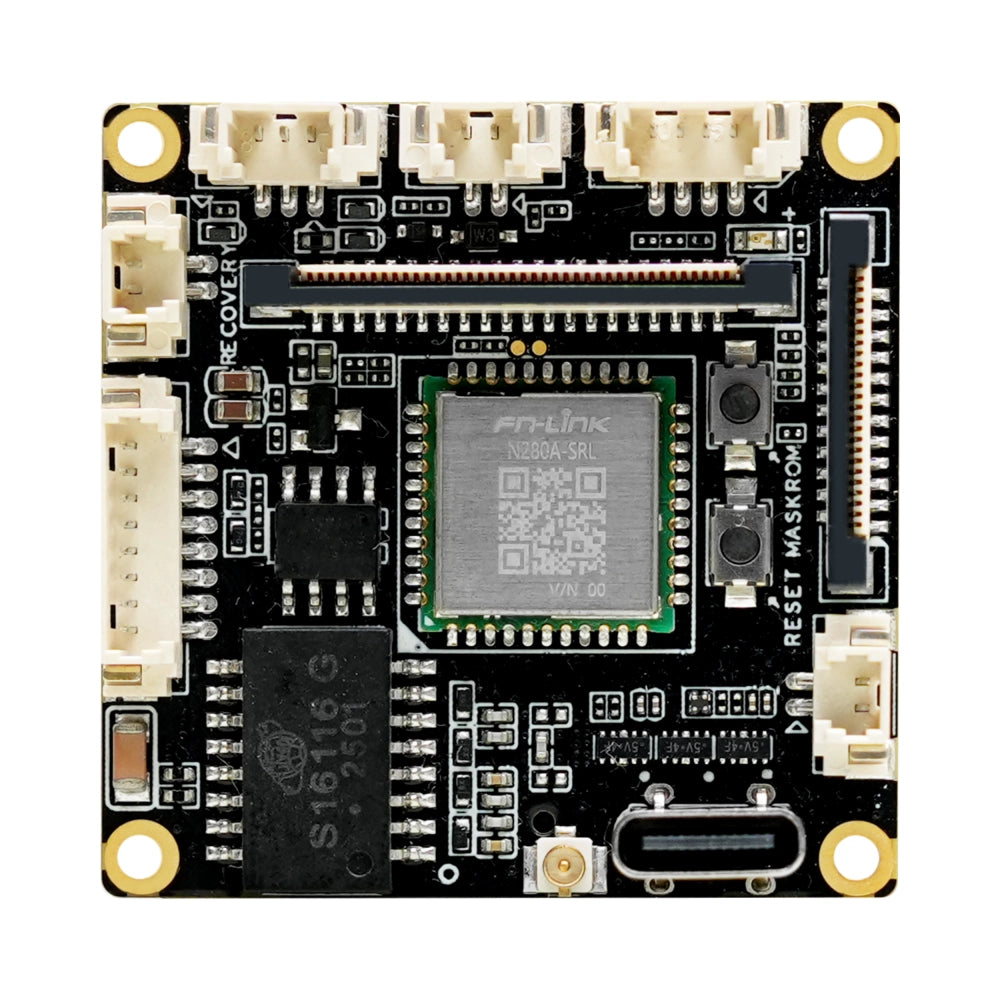

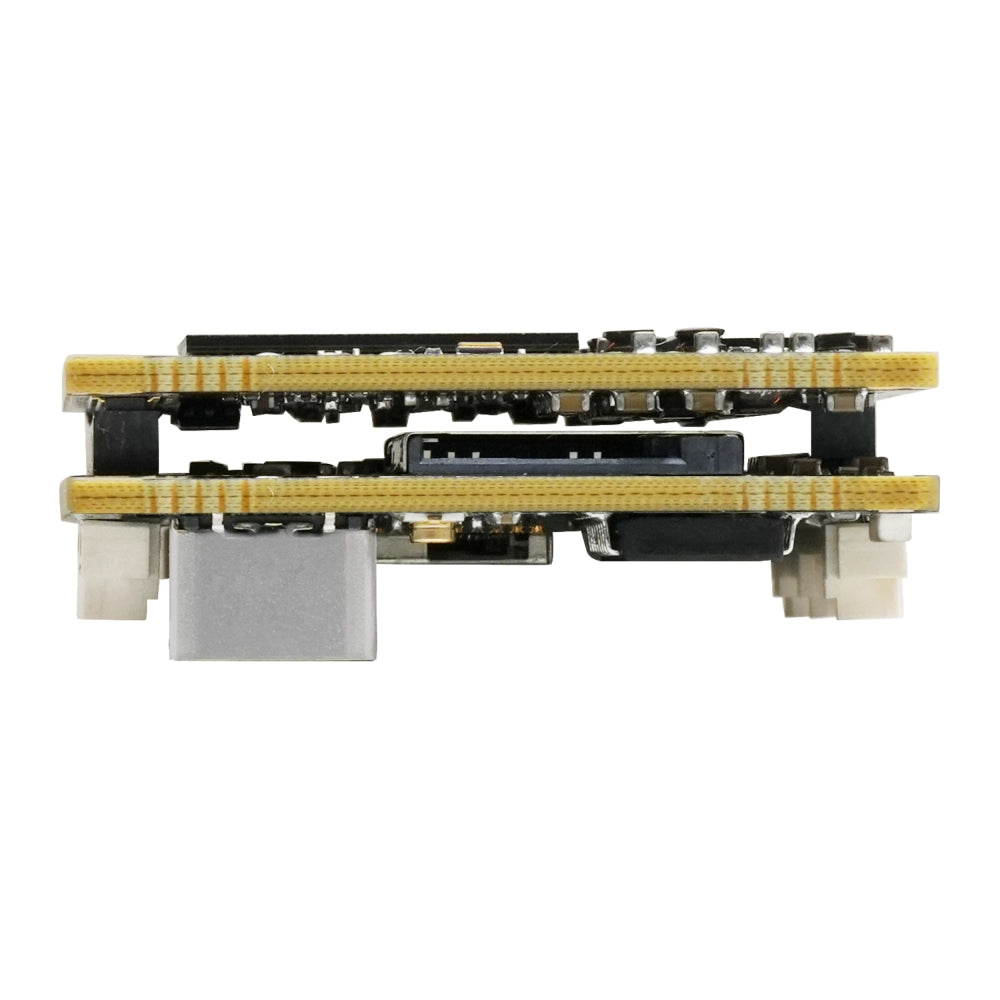

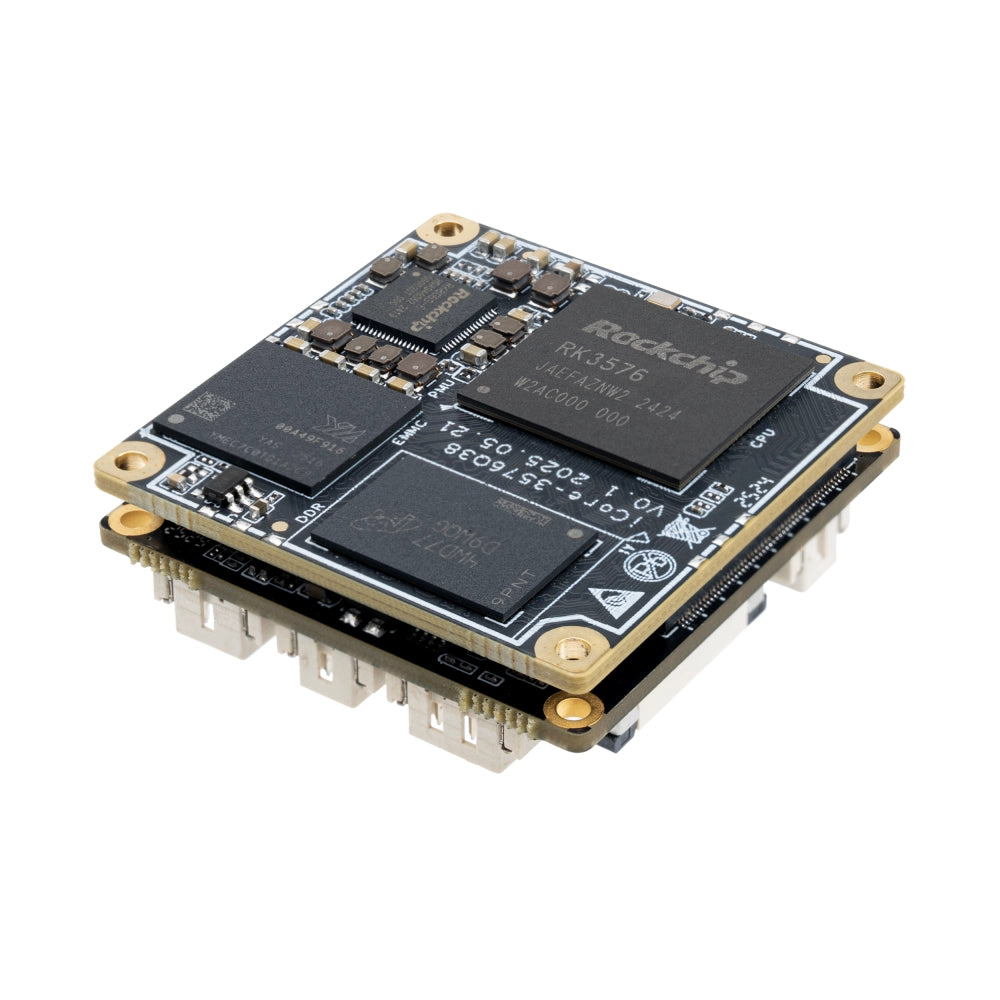

CAM-3576Q38 38mm Mini Single Board Computer
$139.00 USD
$139.00 USD

The CAM-3576Q38 uses Rockchip's octa-core 64-bit AIoT processor RK3576, integrating an NPU with 6 TOPS of computing power, supporting the private deployment of mainstream large-scale AI models and various deep learning frameworks. It also supports 4K@120fps decoding and 4K@60fps encoding, and provides 4K@120fps high-definition, high-frame-rate display capabilities.

Feature

  • Features Rockchip AI Processor RK3576
  • Private Deployment of AI models
  • 8K High-frame-rate Video Decoding
  • Delivers ISP Image Processing Capabilities
  • Compact 38 × 38mm Tiny Size
  • Rich Expansion Interfaces
  • Compatible with Multiple Operating Systems

Product Overview

Soc
  • CAM-3576Q38: Rockchip RK3576
  • CAM-3576JQ38: Rockchip RK3576J

CAM-3576MQ38: Rockchip RK3576M
Cpu
  • CAM-3576Q38: Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 2.2GHz
  • CAM-3576JQ38/3576MQ38: Octa-core 64-bit processor (4×A72 + 4×A53) with a maximum frequency of 1.6GHz
Gpu

G52 MC3@1GHz, support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, embedded with high-performance 2D acceleration hardware
Npu

6 TOPS NPU, It supports INT4/INT8/INT16/FP16/BF16/TF32 operations, supports dual-core collaborative or independent work, and supports multi-task and multi-scene parallelism
Ram

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB optional)
Storage

eMMC (16GB/32GB/64GB/128GB/256GB optional)
Storage expansion

1 x TF Card
Wireless

1 WiFi module on board, supporting 2.4GHz/5GHz dual-band WiFi6 (802.11a/b/g/n/ac/ax)
Power

DC 12V (Connected via 8P-1.25mm Wafer connector)
Os
  • It supports RTLinux kernel and has excellent real-time performance, which is widely used in industrial application scenarios.
  • Support Linux OS, Buildroot, and provide a safe and stable system environment for product research and production.
  • It has new industrial features such as real-time network, Flexbus, hardware resource isolation, and DSMC to meet the needs of different industrial applications.
Dimension

38.09mm × 38.11mm × 11.54mm
Weight

≈21g
Environment

CAM-3576Q38: Operating Temperature: -20℃- 60℃
Storage Humidity: 10%～90%RH (non-condensing)

CAM-3576JQ38/3576MQ38: Operating temperature: -40℃～85℃
Operating humidity: 10%～90%RH (non-condensing)
Ethernet

1 × 100M Ethernet (Led out via 8P-1.25mm Wafer connector)
Button

1 × Reset, 1 × MaskRom
