AIO-OrinNX Jetson Orin NX Motherboard

$579.00 USD
$729.00 USD $579.00 USD
-$150.00 USD
Shipping calculated at checkout.
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Collections:
NVIDIA Jetson Orin Motherboard
$579.00 USD
$729.00 USD $579.00 USD

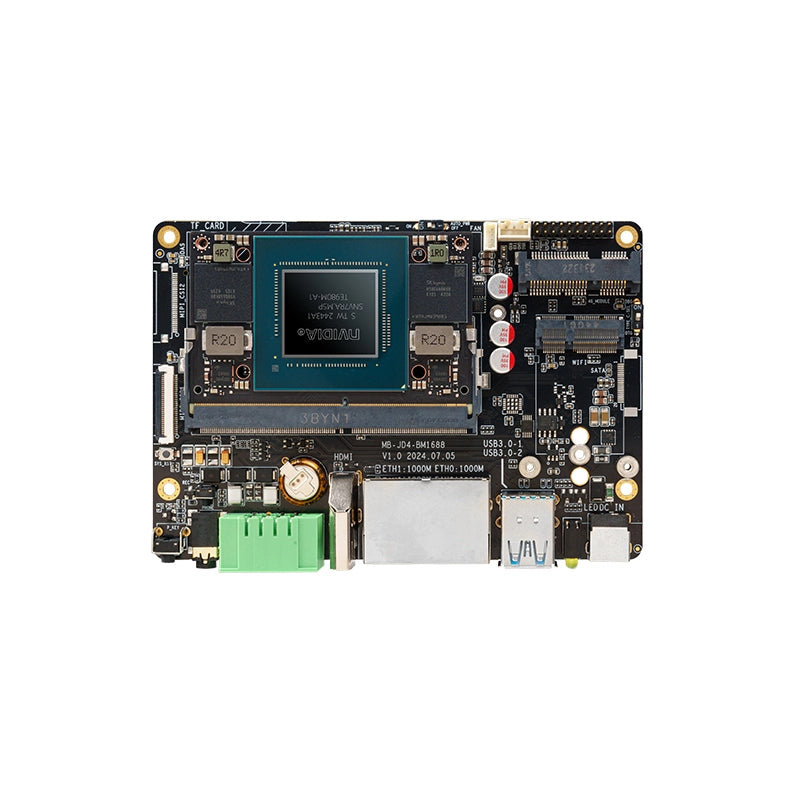

The AIO-OrinNX motherboard is equipped with the NVIDIA Jetson Orin NX edge computing module, an eight-core ARM architecture CPU, and a 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores.

AIO-OrinNX has AI computing power of 157 TOPS and 67 TOPS, respectively, and has powerful functions such as object recognition, target detection and tracking, and speech recognition. They can be applied to a variety of commercial and industrial application scenarios and support the private deployment of large language AI models.

Simplify edge AI and robotics development with a comprehensive AI stack powered by edge generative AI and the NVIDIA Metropolis and Isaac platforms.

With NVIDIA JetPack, Isaac ROS, and reference AI workflows, you can integrate advanced AI technologies into your products without relying on in-house AI resources.



Ai performance

Robot model: ROS robot model is supported.

Large language models: Support Ollama local large model deployment framework, which can be used for natural language processing, code generation, and assistance scenarios. Support the private deployment of ultra-large-scale parametric models under the Transformer architecture, such as Llama3 and Phi-3 Mini.

Large visual models: Support the privatization deployment of large visual models such as EfficientViT, NanoOWL NanoSAM, SAM, and TAM.

Al Painting: Support ComfyUl graphical deployment framework, which can be used for scenarios such as image restoration, image style conversion, and image synthesis. Supports the private deployment of Flux, Stable Diffusion and Stable DiffusionXL image generation models in the AlGc field.
Video encoding

H.265: 1 x 4K@60fps, 3 x 4K@30fps, 6 x 1080p@60fps, 12 x 1080p@30fps
Video decoding

H.265: 1 x 8K@30fps, 2 x 4K@60fps, 4 x 4K@30fps, 9 x 1080p@60fps, 18 x 1080p@30fps
Ai software stack

The NVIDIA Jetson Orin series delivers powerful Al compute power, massive unified memory, and a comprehensive software stack to power the latest generative Al applications. It enables fast inference on any generative Al model powered by the Transformer architecture, enabling superior edge performance on MLPerf.
Soc

NVIDIA Jetson Orin NX
Cpu

Octa-core 64-bit Arm Cortex-A78AE v8.2 processor, up to 2.0GHZ
Tpu

157 TOPS
Vpu

1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores
Ram

16GB LPDDR5
Storage

1 x M.2 M-KEY (Expandable PCle NVMe SSD, supports 2242/2260/2280)
Power

DC 12V (5.5 x2.1mm, support 9V~24V wide voltage input)
Power consumption

Normal: 7.2W(12V/600W)

Max: 34.8W(12V/2900mA)
Video output

1 x HDMI2.0 (4K@60fps)
Video input

2 x MIPI CSI DPHY (1 x 4 Lanes or 2 x 2 Lanes), Line in (Led by double row headers)
Audio

1 x 3.5mm Audio jack (Support MC recording, American Standard CTlA)
Os

Jetson systems based on Ubuntu 22.04 provide a complete desktop Linux environment with graphics acceleration and support for libraries such as NVIDlA CUDA, TensorRT CuDNN, and more.
Dimension

122.89 mm x 85.04 mm x 35.28mm
Weight

Without Fan - 129g, with fan - 180g
Environment

Operating Temperature: -20℃~60°C

Storage Temperature: -20°~ 70°C

Storage Humidity: 10%~90%RH(non-condensing)
Other interface

1 x FAN(4Pin-1.25mm), 1 x SlM Card, 1 x Debug (3Pin-2mm),

1 x Double-row pin headers (2x10-20PIN-2.0mm): USB2.0, SPl, 2 x 12C, Line in, Line out, GPl0

1 x Phoenix connector (2x4Pin,3.5mm pitch): 1 x RS485, 1 x RS232,1 x CAN 2.0
Button

1 x Reset, 1 x Recovery, 1 x Power
