AIO-3568J Quad-Core ARM AI Motherboard

$135.00 USD
$209.00 USD $135.00 USD
-35%
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 2G RAM+32G ROM For 4G Module Seat
Spec: AIO-3568J
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 69 in stock
Collections:
AIO-3568J Quad-Core ARM AI Motherboard
$135.00 USD
$209.00 USD $135.00 USD

The AIO-3568J features a Rockchip RK3568 quad-core processor with dual-core GPU and high-performance NPU, supporting up to 8GB RAM. It includes M.2 and SATA3.0 interfaces, POE+ power supply, WiFi 6, and 5G/4G connectivity. With rich I/O options, it's ideal for smart NVRs, cloud terminals, IoT gateways, and industrial control applications.

Feature

  • RK3568 Quad-core 64-bit Processor: RK3568 quad-core 64-bit Cortex-A55 processor adopts the new ARM v8.2-A architecture, with a main frequency of up to 2.0GHz, greatly improving efficiency. It adopts 22nm lithography process, low power consumption and high performance.
  • Integrated Coprocessor: It integrates dual-core GPU, high-performance VPU and efficient NPU. GPU supports OpenGL ES3.2/2.0/1.1 and Vulkan1.1. VPU can realize 4K 60fps H.264/VP9 video decoding and 1080P 60fps H.264 video encoding. NPU supports one-click switching of mainstream frameworks such as Caffe/TensorFlow.
  • Various Display Interfaces: The motherboard is equipped with MIPI-CSI x2, MIPI-DSI x2, HDMI2.0, and EDP video interfaces, supporting up to three-screen output and different display effects. It has a built-in 8M ISP and supports dual cameras and HDR. The video input interface can be connected to one or more external cameras.
  • Dual Gigabit Ethernet Ports: Equipped with dual adaptive RJ45 Gigabit network ports, it can access and transmit internal and external network data, improving network transmission efficiency. The LAN (POE) network port supports POE+ (802.3AT, output power 30W) power supply, which can power the device while transmitting network data to ensure normal operation of the device.

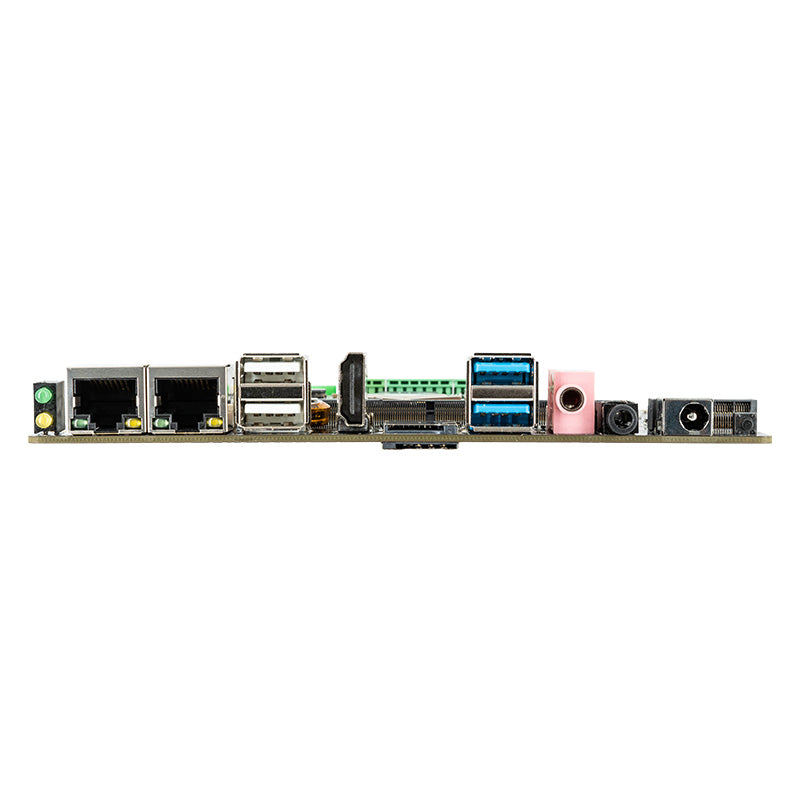

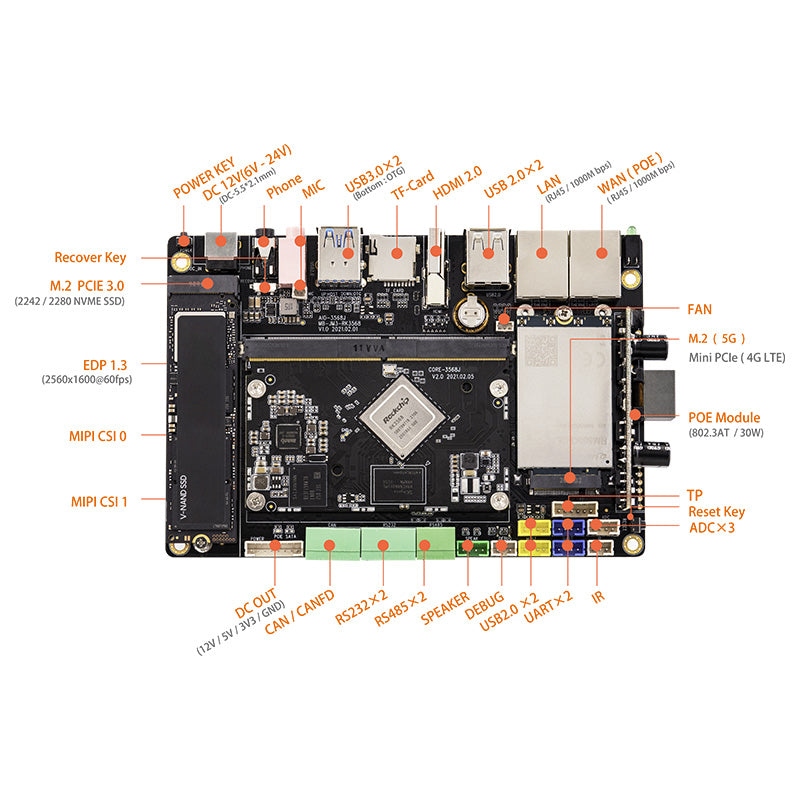

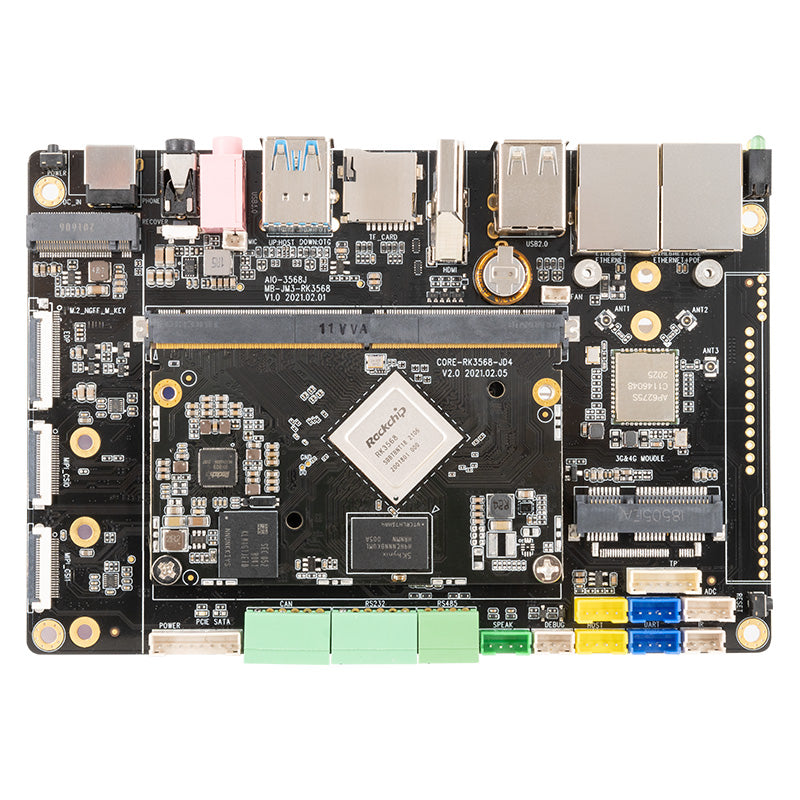

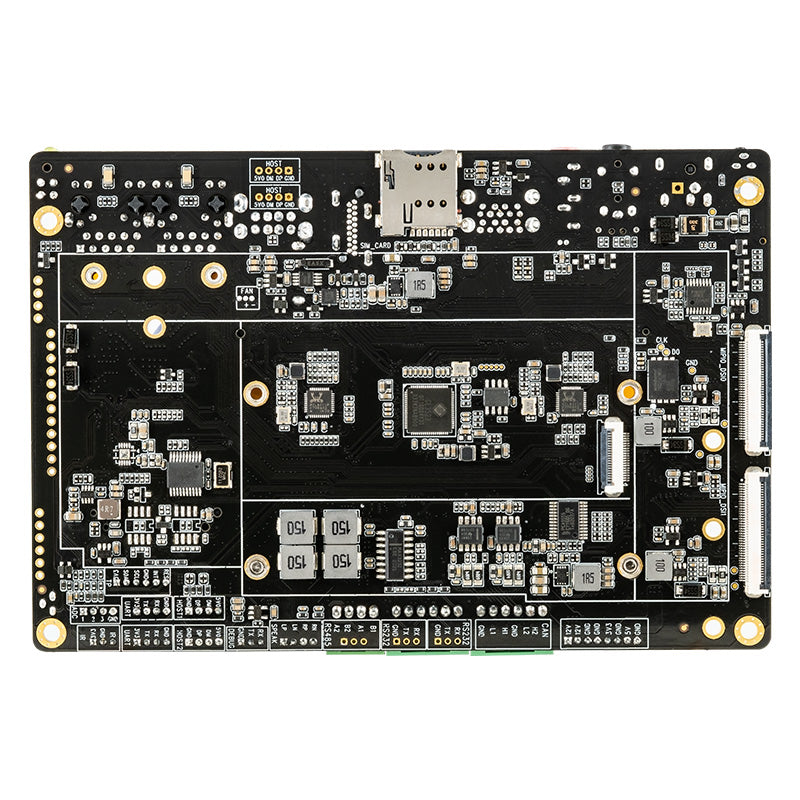

Hardware Overview

Shipping list
  • AIO-3568J*1
  • A to A USB Cable*1
  • 12V DC Power Adapter*1
  • Antenna*2
Soc

RockChip RK3568
Cpu

Quad-core 64-bit Cortex-A55, 22nm lithography process, frequency up to 2.0GHz
Vpu
  • Supports 4K 60fps H.264/VP9 video decoding

Supports 1080P 60fps H.264 video encoding

Supports 8M ISP, supports HDR
Ram

2GB / 4GB / 8GB LPDDR4

32-bit, frequency up to 1600MHz
Storage
  • 32GB / 64GB / 128GB eMMC
  • M.2 PCIe 3.0 × 1 (Supports 2242 / 2280 NVMe SSD)
  • SATA 3.0 x 1 (Supports 2.5” SSD/HDD)
  • TF-Card Slot x1 (Supports TF card expansion)
Display
  • 1 × HDMI2.0, supports 4K@60fps output
  • 2 × MIPI DSI, supports 1920*1080@60fps output (or dual-channel 1 × MIPI DSI 2560*1440@60fps)
  • 1 × eDP1.3 , supports 2560x1600@60fps output
  • Supports up to three screen output with different display
Audio
  • 1 × HDMI audio output
  • 1 × Speaker output
  • 1 × Earphone output
  • 1 × Microphone onboard audio input
Os

Supports Android 11.0, Ubuntu 18.04 OS
Dimension

150.0 mm × 103.8 mm × 21.0 mm
Environment
  • Operating Temperature: -10℃ - 60℃
  • Storage Temperature: -20℃ - 70℃
  • Storage Humidity: 10% - 80%
Ethernet
  • Supports dual Gigabit Ethernet ports(1000 Mbps).
  • Among them, LAN (PoE) port supports POE+ (802.3 AT, output power 30W) power supply.
  • Meets the needs of products with multiple network ports such as NVR and industrial gateway.
Other interface
  • 1 × M.2 PCIe3.0 (Expand with NVMe SSD)
  • 1 × SATA 3.0 (Expand with 2.5” SATA SSD/HDD)
  • 1 × M.2 Expand with 5G (or 1 × Mini PCIe Expand with 4G LTE)
  • 2 × USB3.0
  • 2 × USB 2.0
  • 2 × USB 2.0 HOST socket
  • 2 × CANFD / CAN
  • 2 × RS232
  • 2 × RS485
  • 2 × UART
  • 1 × Debug
  • 1 × Phone
  • 1 × Speaker
  • 1 × Mic
  • 1 × Power (12V/5V/3V3/GND/)
  • 1 × Fan
  • 1 × IR
  • 3 × ADC
  • 1 × TP
Sdk software and firmware files Click Here
