EC-A3588JD4 RK3588 ARM Fanless Industrial PC

$269.00 USD
$269.00 USD
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 4G RAM+32G ROM
Spec: Single machine
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 22 in stock
Collections:
FireflyEC-R3566PC Fanless Industrial ARM PC
EC-R3566PC Fanless Industrial ARM PC
AIBOX-3576 Rockchip AI Edge Computing Embedded PC
FireflyAIBOX-3576 RK3576 Fanless ARM Linux Mini PC
EC-3588JD4 Mini PC
$269.00 USD
$269.00 USD

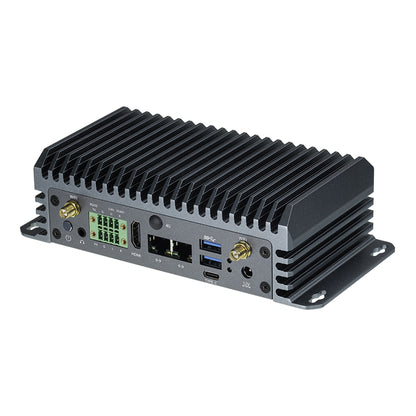

The EC-A3588JD4 ARM Fanless Industrial PC is powered by Rockchip's flagship RK3588 octa-core 64-bit processor, delivering 6 TOPS AI performance for high-efficiency edge computing and AI applications.

Feature

  • Private Deployment of Large Language Models: The EC-A3588JD4 enables private deployment of Transformer-based LLMs, supporting models like Gemma-2B, ChatGLM3-6B, Qwen1.5-1.8B, and Phi-3-3.8B for on-device AI applications.
  • Decoding of 8K Ultra-High Definition Video: The EC-A3588JD4 supports 8K ultra-HD video decoding for sharper visuals and richer detail, powered by an advanced 2D hardware engine for superior display performance.
  • 32 GB of Massive Memory: The EC-A3588JD4 breaks through traditional memory limits, delivering faster response times and robust support for high-memory, large-storage applications.
  • Industrial-Grade Stability: The EC-A3588JD4 ensures industrial-grade reliability with external watchdog support and multi-OS compatibility, making it ideal for ARM PCs, edge computing, cloud servers, and smart NVR systems.

Hardware Overview

Soc

Rockchip RK3588
Cpu

Octa-core 64-bit processor (4×Cortex-A76+4×Cortex-A55) , main frequency up to 2.4GHz
Gpu

ARM Mali-G610 MP4 quad-core GPU, support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu

The computing power is up to 6TOPS (INT8), support INT4/INT8/INT16 mixed operations
Ram

LPDDR4/LPDDR4x (4GB/8GB/16GB optional, up to 32GB)
Storage

eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion

1 × TF Card, M.2 SATA3.0/PCIe NVMe SSD 2242/2260/2280 (Inside the computer)
Power

DC 12V (5.5mm × 2.1mm, support 9V~24V wide voltage input)
Video output

1 × HDMI2.1 (8K@60fps or 4K@120fps)
Os

Android, Linux OS
Software support
  • Support the privatization deployment of ultra-large-scale parametric models under the Transformer architecture, such as Gemma-2B, ChatGLM3-6B, Qwen-1.8B, Phi-3-3.8B and other large language models
  • It supports traditional network architectures such as CNN, RNN, and LSTM, and supports the import and export of RKNN models; Support a variety of deep learning frameworks, including TensorFlow, TensorFlow Lite, PyTorch, Caffe, ONNX and Darknet. It also supports the development of custom operators
  • Support Docker container management technology
Dimension

188.0mm × 88.44mm × 50.65mm
Weight

Net weight of computer: 0.79kg, Total weight with package: 1.12kg
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Storage Humidity: 10%～90%RH(non-condensing)
Internet
  • Ethernet: 2 × RJ45 (1000Mbps)
  • WiFi: Extend WiFi/Bluetooth module through M.2 E-KEY (2230), support 2.4GHz/5GHz dual band WiFi6 (802.11a/b/g/n/ac/ax), Bluetooth5.2
  • 4G: Extend 4G LTE via Mini PCIe
Usb

2 × USB3.0 (Max: 1A)
Other
  • 1 × Type-C (OTG), 1 × SIM Card
  • 1 × Phoenix connector (2×4PIN, 3.5mm pitch): 1 × RS485, 1 × RS232, 1 × CAN 2.0
Product tutorials Click Here
Sdk software and firmware files Click Here
