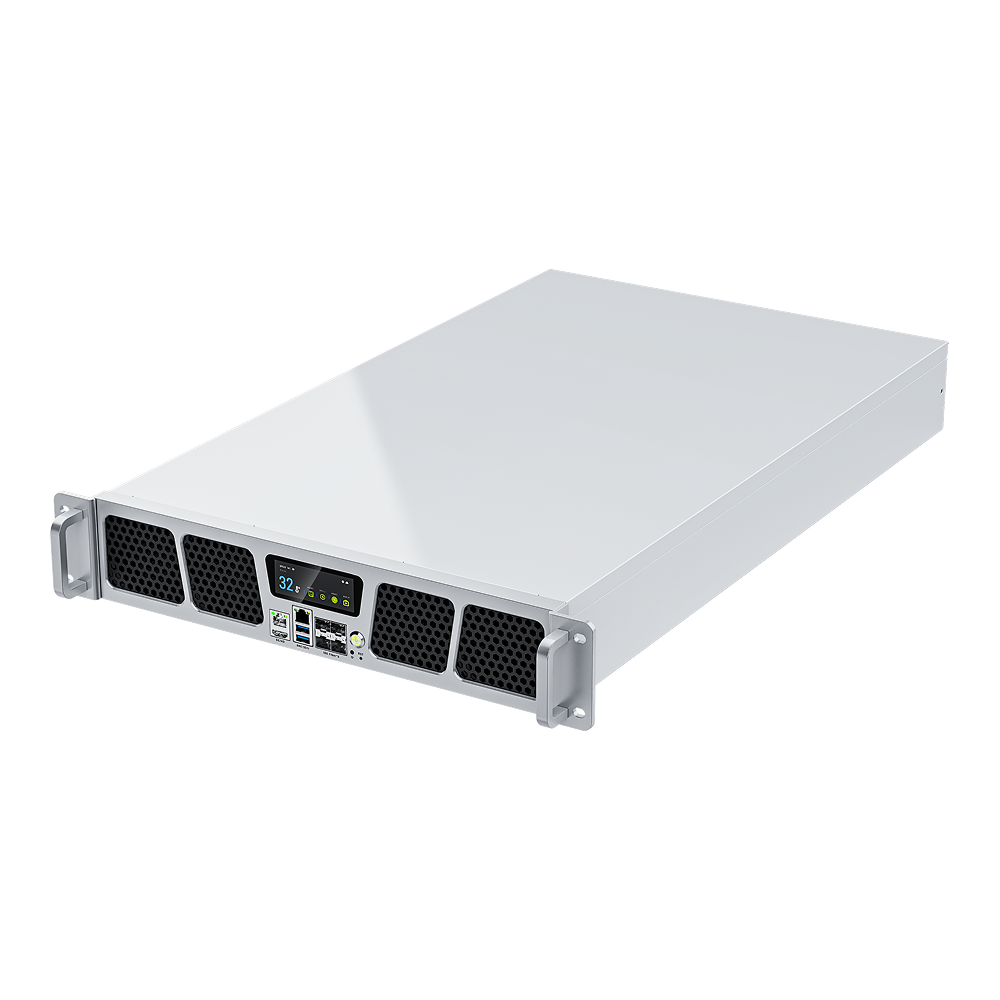

CSC2-N48SPK3 RISC-V Server

Regular price $38,829.00 USD
Regular price Sale price $38,829.00 USD
Shipping calculated at checkout.
Spec: K3*48(16G+128G)+BMC3588 8G
  • American Express
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 50 in stock
Regular price $38,829.00 USD
Regular price Sale price $38,829.00 USD

Industry's first RVA23 Profile mass-production array server, featuring 10 built-in SpacemiT K3 compute nodes (quantity configurable). A single node delivers maximum frequency of 2.4GHz and peak computing power of 60 TOPS, capable of running 30B large models. It supports mainstream build systems such as Open Build Server and Koji, as well as compatibility testing for mainstream Linux distributions, open-source software, and AI frameworks. It also offers remote RISC-V cloud debugging functionality, features dual 10GbE ports and Gigabit Ethernet ports, expandable with up to 48 M.2 PCIe NVMe SSDs and comes with integrated BMC management system.

Feature

  • Full RISC-V Hardware Virtualization
  • High-Level Security Defense Technology
  • RISC-V Software Compatibility Testing
  • Remote RISC-V Debugging Functionality
  • Runs Various Software Smoothly
  • Integrated BMC Management System
  • Integrated Network Control
  • Expandable with up to 48 M.2 PCIe NVMe SSDs

Product Overview

Ai performance

2880 TOPS (60T × 48, SquareINT4). It supports the RVV vector instruction set, native FP8 inference and multimodal algorithm acceleration. A single node can run 30B local models, with model performance exceeding 10 Tokens/S@30B, enabling deployment of all AI algorithms and models.

Server form

2U rackmount computing power server

Number of nodes

48 distributed computing nodes + 1 control node

Compute nodes

8-core X100 64-bit RISC-V AI processor SpacemiT Key Stone K3, with a maximum main frequency of 2.4GHz. A single node delivers 130K DMIPS of general-purpose computing power and fully complies with the RVA23 Profile. Its single-core SpecInt2006 exceeds 9.0/GHz, with performance equivalent to ARM-A76.

Control nodes

Octa-core 64-bit processor RK3588, with a maximum clock speed of 2.4GHz and a peak computing power of 6TOPS

Fan module

12 high-speed cooling fans

Installation requirements

IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above
Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm

Bmc

Integrated BMC management system based on web management interface, supports monitoring, configuration, alarming, remote operation and maintenance, virtual replacement management, and provides CLI command line and Redfish and other tools to facilitate secondary development

Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)

Ram

32GB LPDDR5 × 48 (8/16/32GB)

Storage

128GB UFS2.2 × 48

Storage expansion

2280 PCIe NVMe SSD × 48 (Optional)

Codecs

Video Encoding: 4K@60fps H.264
Video Decoding: 4K@120fps H.264/VP9

Power

2 AC redundant power supplies (Hot-swappable supported)

Display

1 × HDMI (Maximum resolution 1080P, BMC management display)

Dimension

Standard 2U rack servers: 724.0mm (L) × 430.0mm (W) × 88.8 mm (H)

Weight

Net weight of the server: 23.1kg, total weight with packaging: 25.3kg

Environment

Operating Temperature: 0ºC ~ 35ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH (non-condensing)

Usb

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG using a USB flash drive)

Button

1 × Reset button, 1 × Power button, 1 × Restart BMC button
