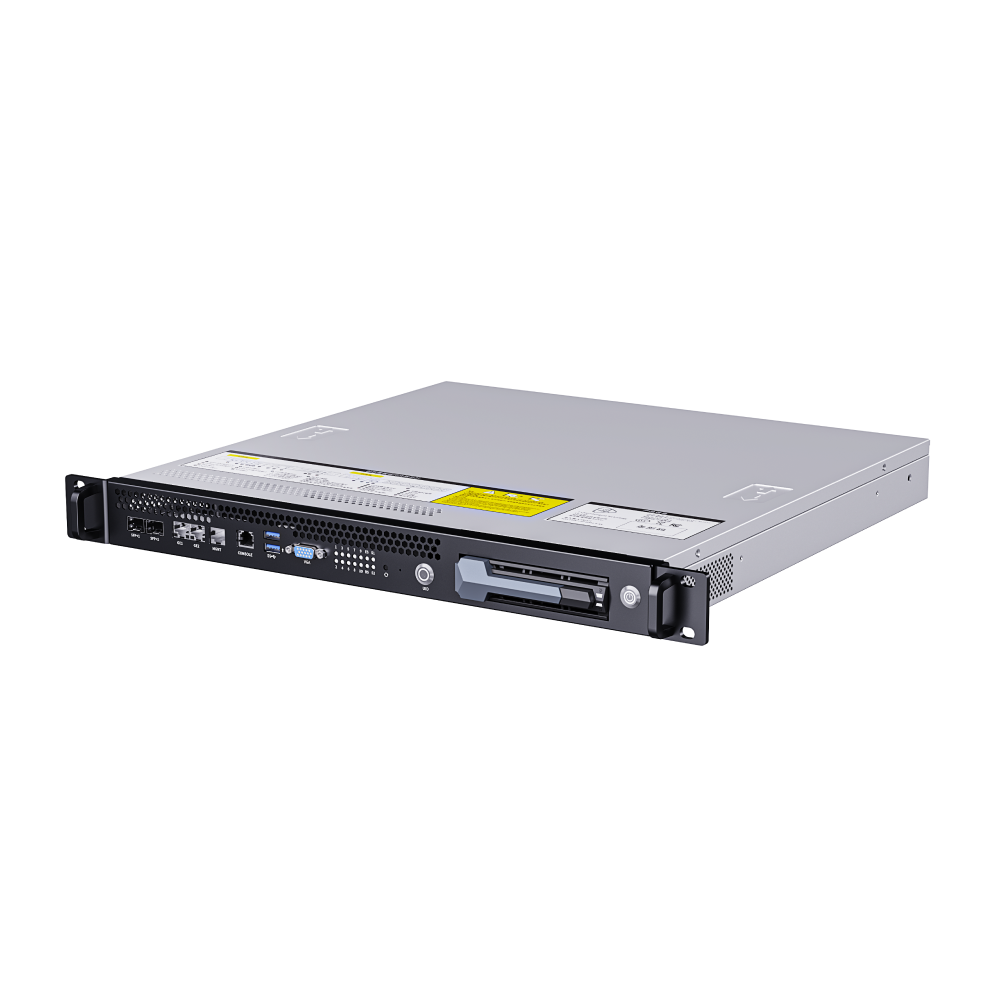

CSB1-N10SPK3 RISC-V Server

$9,709.00 USD
$9,709.00 USD
Shipping calculated at checkout.
Spec: K3*10(16G+128G)+BMC3588 8G
  • American Express
  • Bancontact
  • Google Pay
  • iDEAL Wero
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 50 in stock
FireflyCSB2-N10SPK3 RISC-V Server
CSB2-N10SPK3 RISC-V Server
AIBOX-K3 RISC-V Edge Mini PC
FireflyAIBOX-K3 RISC-V Edge Mini PC
$9,709.00 USD
$9,709.00 USD

Industry's first RVA23 Profile mass-production array server, featuring 10 built-in SpacemiT K3 compute nodes (quantity configurable). A single node delivers maximum frequency of 2.4GHz and peak computing power of 60 TOPS, capable of running 30B large models. It supports mainstream build systems such as Open Build Server and Koji, as well as compatibility testing for mainstream Linux distributions, open-source software, and AI frameworks. It also offers remote RISC-V cloud debugging functionality, features dual 10GbE ports and Gigabit Ethernet ports, and comes with an integrated BMC management system.

Feature

  • Support for Linux Distribution Build Systems
  • Full RISC-V Hardware Virtualization
  • High-Level Security Defense Technology
  • Supports RISC-V Software Compatibility Testing
  • Remote RISC-V Debugging Functionality
  • Exceptional Power Efficiency, Green Computing Power
  • Integrated BMC Management System
  • Dual 10GbE SFP+ Ports ＆ Gigabit Ethernet

Product Overview

Server form

1U rack-mounted computing power server
Number of nodes

10 distributed computing nodes + 1 control node
Compute nodes

8-core X100 64-bit RISC-V AI processor SpacemiT Key Stone K3, with a maximum main frequency of 2.4GHz. A single node delivers 130K DMIPS of general-purpose computing power and fully complies with the RVA23 Profile. Its single-core SpecInt2006 exceeds 9.0/GHz, with performance equivalent to ARM-A76.
Control nodes

Octa-core 64-bit processor RK3588, main frequency up to 2.4GHz, the highest computing power is 6TOPS
Ai computing power

600 TOPS (60T × 10, SquareINT4). It supports the RVV vector instruction set, native FP8 inference and multimodal algorithm acceleration. A single node can run 30B local models, with model performance exceeding 10 Tokens/S@30B, enabling deployment of all AI algorithms and models.
Fan module

6 high-speed cooling fans
Installation requirements

IEC 297 Universal Cabinet Installation: 19 inches wide and 800 mm deep and above
Retractable slideway installation: The distance between the front and rear holes of the cabinet is 543.5mm~848.5mm
Bmc

The BMC management system is integrated with the web-based management interface, supporting Redfish, VNC, NTP, monitoring advanced and virtual media, and the BMC management system can be redeveloped
Console

1 × Console (RJ45, BMC debug serial port, baud rate 115200)
Ram

32GB LPDDR5 × 10 (8/16/32GB)
Storage

128GB UFS2.2 × 10
Storage expansion

3.5-inch/2.5-inch SATA3.0 SSD hard drive slot × 1 (Supports hot swapping; BMC can directly operate the hard drive, and computing child nodes can indirectly access the hard drive through the network sharing method provided by BMC)
Codecs

Video Encoding: 4K@60fps H.264
Video Decoding: 4K@120fps H.264/VP9
Power

1 × AC power supply
Display

1 × VGA (maximum resolution 1080P, BMC management display)
Dimension

Standard 1U rack servers: 494.0mm(L) × 440.5mm(W) × 44.4mm(H)
Weight

Server net weight: 8.1kg, total weight with packaging: 10.3kg
Environment

Operating Temperature: 0ºC ~ 45ºC, Storage Temperature: -40ºC ~ 60ºC, Operating Humidity: 5% ~ 80%RH(non-condensing)
Usb

2 × USB3.0 (The lower USB is USB3.0 OTG, and the BMC can be upgraded OTG by using a USB flash drive)
Button

1 × Reset, 1 × UID, 1 × Power
