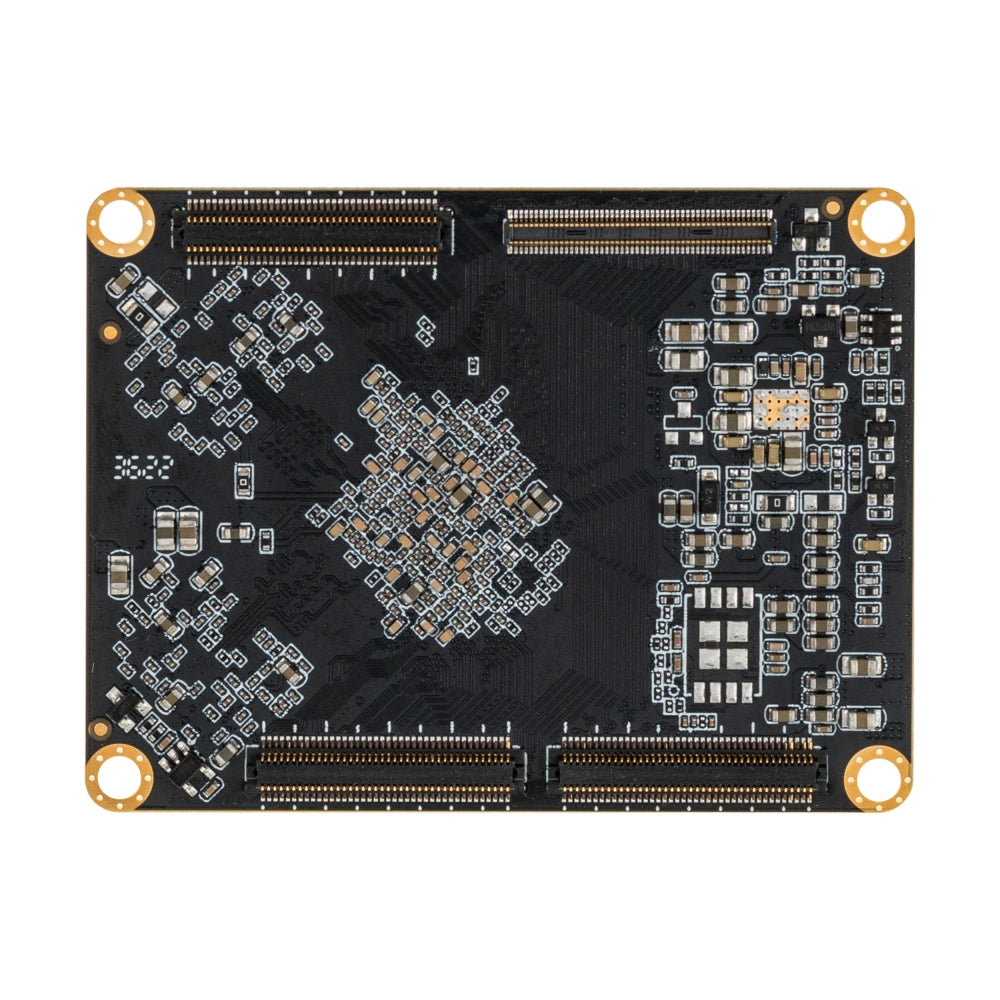

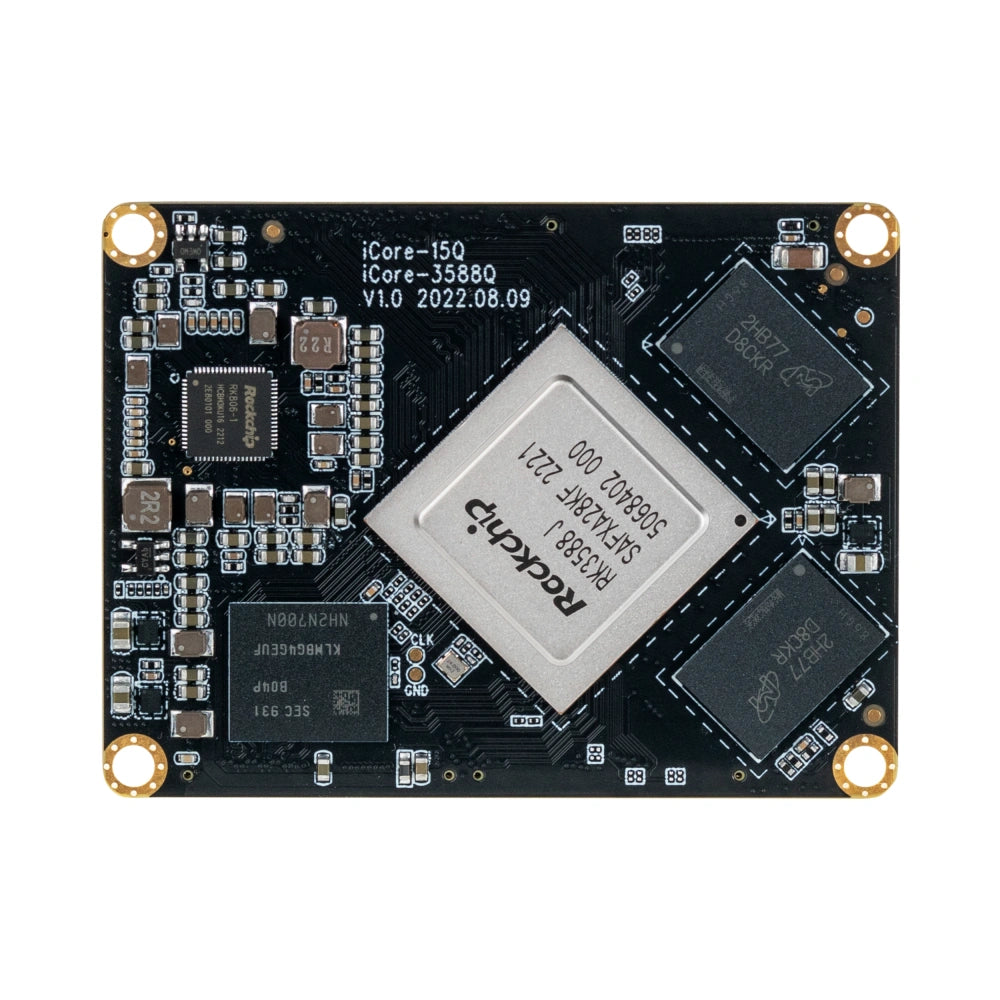

iCore-3588JQ 8K Industrial AI System on Module

$199.00 USD
$249.00 USD $199.00 USD
-20%
Shipping calculated at checkout.
Storage: 4G RAM +32G ROM
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 30 in stock
Collections:
FireflyCore-1126K-JD4 Industrial System on Module
Core-1126K-JD4 Industrial System on Module
iCore-3568JQ Quad-Core Industrial System on Module
FireflyiCore-3568JQ Quad-Core Industrial System on Module
$199.00 USD
$249.00 USD $199.00 USD

Soc

RK3588J Up to 1.6GHz
Gpu

ARM Mali-G610 MP4 quad-core GPU，Support OpenGL ES3.2 / OpenCL 2.2 / Vulkan1.1, 450 GFLOPS
Npu

Up to 6TOPs (INT8)，Support INT4/INT8/INT16 mixed operations

Support framework switching of TensorFlow/MXNet/PyTorch/Caffe
Vpu

Hardware decoding:

  • 8K@60fps H.265/VP9/AVS2,
  • 8K@30fps H.264 AVC/MVC
  • 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

Hardware encoding:

  • 8K@30fps H.265 / H.264
Ram

LPDDR4/LPDDR4x(industrial) (4GB/8GB/16GB, up to 32GB )
Storage

eMMC (32GB/64GB/128GB/256GB optional)
Sata

3x SATA3.0
Power

5V (voltage tolerance ± 5%)
Power consumption
  • Idle: ≈0.032W (4.0V / 8mA)
  • Typical: ≈0.84W (4.0V / 210mA)
  • Max: ≈7.6W (4.0V / 1.9A)
Video output
  • 2 x HDMI2.1 (8K@60fps or 4K@120fps, shared with eDP)
  • 2 x MIPI-DSI (4K@60fps)
  • 2 x DP1.4 (8K@30fps, shared with USB 3.0)
  • 1 x BT.1120 (1080P@60fps)
Video input
  • 1 x HDMI-IN (4K@60fps), supporting HDCP 2.3, 2 x MIPI CSI (4 lanes) or 4 x MIPI CSI (2 lanes) or 1 x MIPI CSI (4 lanes) + 2 x MIPI CSI (2 lanes)
  • 2 x MIPI DC (4-lane DPHY v2.0 or 3-lane CPHY V1.1)
  • 1 x DVP (up to 150MHz data input)

*Support multi-channel 8K video output and 4K video input. Up to seven displays can be achieved.
Audio output
  • 2 x I2S(8 lanes)
  • 2 x I2S (2 lanes)
  • 2 x SPDIF
  • 2 x PDM (8 lanes, supporting multi-Mic array)
  • 1 x dual-channel digital audio codec (16-bit DAC)
  • 1 x VAD
Audio output
  • 2 x I2S(8 lanes)
  • 2 x I2S (2 lanes)
  • 2 x SPDIF
  • 2 x PDM (8 lanes, supporting multi-Mic array)
  • 1 x dual-channel digital audio codec (16-bit DAC)
  • 1 x VAD
Os

Android, Linux OS
Dimension

66 mm x 50 mm
Environment
  • Operating temperature: -40℃～85℃
  • Operating humidity: 10%～90%RH (non-condensing)
Network

PCIe3.0/GMAC/SDIO3.0/USB3.1 (Gen1), capable of multi-channel Gigabit Ethernet, WiFi 6/Bluetooth, 5G/4G LTE expansion
Connector

BTB connector (3 x BTB Socket (80Pin)+ 1 x BTB Socket (100Pin))
Watchdog

Independent watchdog
Usb
  • 3 x USB3.1（Gen1）
  • 2 x USB2.0 Host
  • 2 x USB2.0 OTG
Other
  • 9 x I2C
  • 10 x UART
  • 5 x SPI
  • 4 x ADC
  • 16 x PWM
  • 1 x SDMMC
  • GPIOs
  • 3 x CAN
