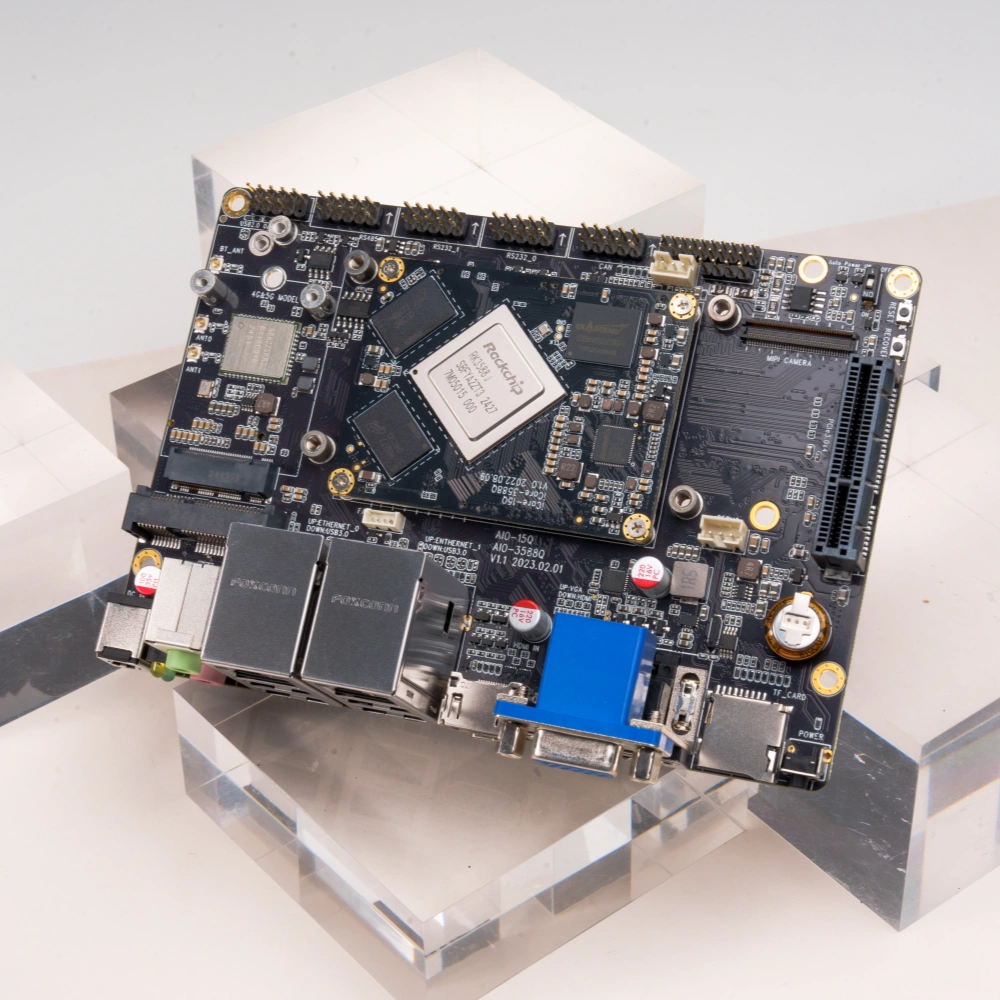

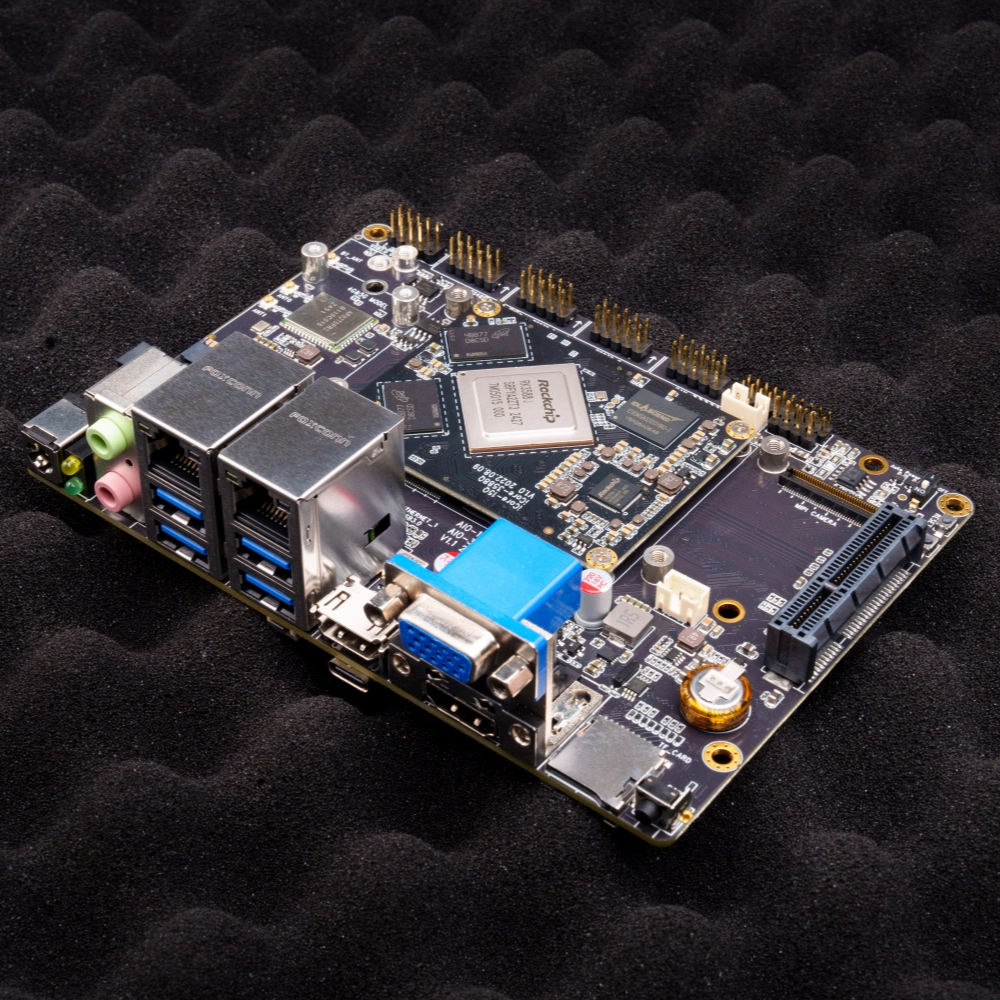

AIO-3588Q 8K AI ARM Motherboard

$359.00 USD
$359.00 USD
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 4G RAM+32G ROM
Spec: SoM With Carrier Board
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 100 in stock
Collections:
FireflyROC-RK3308B-CC-PLUS ARM Single Board Computer
ROC-RK3308B-CC-PLUS IoT Quad-core Motherboard
AIBOX-1684X AI Embedded PC Edge Computing Video Analysis
FireflyAIBOX-1684X Embedded PC Edge Computing Video Analysis
AIO-3588Q 8K AI Motherboard
$359.00 USD
$359.00 USD

AIO-3588Q has rich interfaces, including Gigabit Ethernet, WiFi 6, 5G/4G expansion, rich video input and output interfaces, and M.2 SATA SSD. It can be widely used in ARM PC, edge computing, cloud terminals, cloud servers, industrial control, smart vehicles and other fields.

Feature

  • New-gen AIoT SoC: RK3588 Series: RK3588 is Rockchip's new generation flagship AIoT chip, using 8nm lithography technology.
  • 6 TOPS Powerful Computing Power: Equipped with a powerful NPU with 6 TOPS computing power, it supports INT4/INT8/INT16 mixed operations and TensorFlow/MXNet/PyTorch/Caffe framework switching. Its good compatibility can meet the edge computing needs of terminal devices.
  • 8K Experience: The motherboard supports 8K@60fps H.265/VP9 video decoding, bringing true 8K high-definition display and exquisite picture quality. It is fully compatible with OpenGL ES 1.1, 2.0, 3.2, OpenGL ES 2.2, and Vulkan 1.2. The 2D hardware engine significantly improves display performance, bringing a smoother operating experience and meeting users' diverse viewing needs.
  • Multi-channel Input and Output: The motherboard has HDMI RX2.0/MIPI-CSI/DP1.4/8T1120 multi-channel video output and HDMI RX2.0/MIPI-CSI/DP1.4 video input interface, supports multi-channel 8K video output and 4K video input, can achieve up to seven-screen display, provides up to 16-channel 1080P@30fps cameras, and 4, 6, and 8-channel wide-angle seamless stitching.
  • Super-large 32GB RAM: The motherboard can be configured up to 32GB, breaking through previous memory limitations, bringing faster response speeds, and meeting product demands for large memory and high storage capacity.
  • M.2 SATA3.0 /PCIe SSD Expansion: M.2 SATA3.0/PCIe NVMe SSD (2242) allows easy expansion of devices to TB storage capacity.
  • PCIe 3.0 for High-speed Transmission: Onboard standard PCIe 3.0 (4 Lane) interface, extremely fast and stable transmission speed, can connect to standard PCIe 3.0 devices.

Feature

  • ARM PC
  • Edge Computing
  • Industrial Control
  • Cloud Servers
  • Cloud Terminals
  • Smart Vehicles

Shipping list
  • AIO-3588Q x 1
  • 12V 2A power adapter x 1
  • Copper tube antenna x 3
  • Connection cable (FC10 to DB9 serial port cable) x 4
  • HDMI-2.1-8K data cable x1
  • Radiator x 1
Soc

RK3588 Up to 2.4GHz
Gpu

ARM Mali-G610 MP4 quad-core GPU

Support OpenGL ES3.2/OpenCL 2.2/Vulkan1.1, 450 GFLOPS
Npu

Up to 6TOPs(INT8)

Support INT4/INT8/INT16 mixed operations

Support framework switching of TensorFlow / MXNet / PyTorch / Caffe
Vpu

Decoding: 8K@60fps H.265/VP9/AVS2, 8K@30fps H.264 AVC/MVC, 4K@60fps AV1, 1080P@60fps MPEG-2/-1/VC-1/VP8

Encoding: 8K@30fps H.265 / H.264
Ram

LPDDR4/LPDDR4x/LPDDR5 (4GB/8GB/16GB, up to 32GB)
Storage

eMMC (16GB/32GB/64GB/128GB optional)
Storage expansion

1 × M.2 SATA 3.0 SSD (2242), 1 × TF Card
Pcie

1 x PCIe 3.0 (4 lanes)
Sata

1 x M.2 SATA 3.0
Power

12V (voltage tolerance ± 5%)
Power consumption
  • Min: ≈0.78W(12.0V/65mA)
  • Normal: ≈2.3W(12.0V/190mA)
  • Max: ≈14.4W(12.0V/1200mA)
Video output
  • 1 × HDMI2.1 (8K@60fps or 4K@120fps)
  • 1 × DP1.4 (8K@30fps, via USB-C)
  • 1 × VGA (1080P@60fps)
  • 1 × eDP1.3 (2K@60Hz)
  • 2 × MIPI-DSI (4K@60fps)

Support six-screen different display
Video input
  • 1 × HDMI-IN (4K@60fps), support HDCP 2.3
  • 1 × MIPI_CSI0 (1×4 lanes or 2 × 2 lanes, 30P-0.5mm)
  • 1 × BTB (1×MIPI_CSI1 (4 lanes) or 2×MIPI_CSI1 (2 lanes) + 2×MIPI_D/C (4 lanes DPHY v2.0 or 3-lane CPHY V1.1)
Os

Android and Linux OS

Support Kernel-based Virtual Machine (KVM) and Docker container technology

You can simultaneously run Android, Ubuntu, Debian, and Linux and achieve a “One Screen for One OS” display.
Dimension

146 mm x 102 mm x 37.5 mm
Environment

Operating temperature: -20℃～60℃

Operating humidity: 10%～90%RH (non-condensing)
Wireless network

2.4GHz/5GHz dual-band WiFi 6 (802.11a/b/g/n/ac/ax), Bluetooth 5.0, scalable 5G/4G LTE
Ethernet

2 × 1000Mbps Ethernet (RJ45)
Usb
  • 4 × USB 3.1 (Gen1)
  • 3 × USB 2.0 (pin)
  • 1 × USB-C (OTG/DP1.4)
Other
  • 2 x RS232
  • 1 x RS485
  • 1 x CAN
  • 1 x Debug
  • 1 x 20P-2.0 pin (GPIO, ADC, SPI, I2C, LED\REV\PWR\RST)
  • 1 x CAN（not supported by AIO-3588MQ）
Product tutorials Click Here
Sdk software and firmware files Click Here
