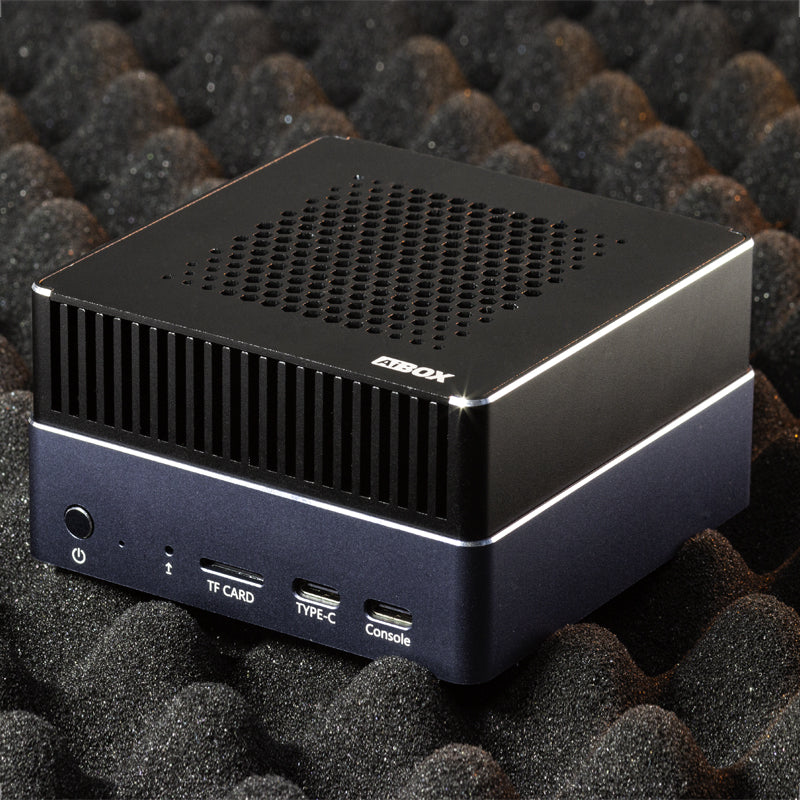

AIBOX-186 AI Edge Computing Embedded PC

$199.00 USD
$199.00 USD
Shipping calculated at checkout.

⭐️Get 5% Off (First Order) - Code: TCHIP5

Storage: 4G RAM+32G ROM
  • American Express
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Union Pay
  • Visa
Brand: Firefly
Availability: 7 in stock
Collections:
FireflyAIBOX-1684 AI Edge Computing Industrial PC
AIBOX-1684 AI Edge Computing Embedded PC
AIBOX-186 AI Edge Computing Embedded PC
$199.00 USD
$199.00 USD

The AIBOX-186 AI edge computer delivers 7.2 TOPS of processing power, enabling private deployment of mainstream large AI models for secure, customized on-device intelligence in enterprise and industrial applications.

Feature

  • 7.2 TOPS AI Processor CV186AH: The CV186AH AI processor by SOPHON integrates a hexa-core ARM Cortex-A53 (1.6GHz) and a high-efficiency TPU, delivering 7.2 TOPS INT8 and 12 TOPS INT4 performance with 1.5 TFLOPS FP16/BF16 support. Compatible with mainstream AI frameworks, it’s engineered for edge AI inference, computer vision, and embedded deep learning applications.
  • Multi-channel Video AI Performance: This high-performance AI processing box supports 16-channel 1080P H.264 decoding, 10-channel 1080P encoding, and simultaneous 16-channel HD video analysis (decoding + AI processing). Designed for intelligent video analytics, it enables real-time applications including facial recognition, license plate identification, and smart city solutions.
  • Strong Network Communication Capability: The AIBOX embedded PC is equipped with dual 1000Mbps Ethernet ports to ensure high-speed and stable network communication, meeting the needs of various application scenarios.
  • All-aluminum Alloy Enclosure: The industrial-grade AI box features a rugged all-metal enclosure with aluminum alloy construction for superior thermal conduction. Its optimized grille design enables efficient airflow and heat dissipation, maintaining peak computing performance and reliability even in high-temperature environments.

Hardware Overview

Soc

SOPHON CV186AH
Cpu

Hexa-core ARM Cortex-A53 @1.6GHz
Tpu

7.2T@INT8, 12T@INT4, and 1.5T@FP16/BF16 computing power
Vpu
  • Video decoding: H.264 / H.265 decoding (Max performance: 1920 x 1080@480FPS or 3840 x 2160 @120FPS)
  • Video encoding: H.264 / H.265 encoding (Max performance: 1920 x 1080@300FPS or 3840 x 2160 @75 FPS)
  • Image codec: JPEG/MJPEG Baseline codec (JPEG codec with a maximum resolution of 1080P@480 FPS)
Ram

4GB LPDDR4 (4GB/8GB/16GB optional)
Storage

32GB eMMC (32GB/64GB/128GB/256GB optional)
Storage expansion

1 x M.2 (Expandable PCIe NVMe SSD(default support)/ SATA SSD(supported after software update), supports 2242/2260/2280) (inside the device), 1 x TF Card
Power

DC 12V/3A(DC 5.5*2.1mm)
Power consumption
  • Normal: 6W(12V/500mA)
    Max: 10.8W(12V/900mA)
Video output

1 x HDMI2.0 (4K@60fps
Os

Linux
Software support
  • The private deployment of ultra-large-scale parameter models under the Transformer architecture, including large language models such as Gemma-2B, LlaMa2-7B, ChatGLM3-6B, Qwen1.5-1.8B.
  • A variety of deep learning frameworks, including TensorFlow, PyTorch, TensorRT, TFLite, PaddlePaddle, Caffe, and ONNX, as well as custom operator development
  • Docker container management technology
Dimension

93.4 mm × 93.4mm × 50 mm
Weight

≈ 500g
Environment
  • Operating Temperature: -20℃～60℃
  • Storage Temperature: -20℃～70℃
  • Storage Humidity: 10%～90%RH (non-condensing)
Ethernet

2 x 1000Mbps Ethernet
Usb

2 x USB3.0 (Current Limit: 1A)
Other
  • 1 x Type-C (USB 2.0 device mode only),
  • 1 x Console (Debug serial),
  • 1 x Power button,

1 x Recovery
Product tutorials Click Here
Sdk software and firmware files Click Here
